45A 4 Pin Power High Current Connector 500 Times Mechanical Life Touch proof

Large Image : 45A 4 Pin Power High Current Connector 500 Times Mechanical Life Touch proof

Product Details:

Place of Origin:	China
Brand Name:	NeoPower
Certification:	CE IEC FCC RoHs
Model Number:	FHV20436*01

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	Negotiable according to Quantities
Packaging Details:	Standard Export Carton Box
Delivery Time:	3~7 days
Payment Terms:	Western Union, MoneyGram
Supply Ability:	50000 per day

Contact Now

45A 4 Pin Power High Current Connector 500 Times Mechanical Life Touch proof

Description

Rated Current:	20A/ 30A/ 45A/ 70A	Rated Voltage:	1000V DC
Insulation Resistance:	5000 MΩ Min （Dry） 200 MΩ Min (RH 95%)	Test Voltage:	3000V AC
Minimum Mating Cycles:	500 Times	Wire Range:	16 Mm2~35mm2
Protection Grade:	IP67B	Operation Temperature:	-40 ℃ ~+125 ℃
Salt Spray Resistance:	144H (mating State)	EMI Shielded:	No
High Light:	45A high current battery connectors , touchproof high current battery connectors , 45A 4 pin power connector

4 Pin Emi Shielded IP67 Waterproof High Power Quick Lock Socket Plug Cable Battery Connector

Part No.: FHV20*436**01

Description:

This product is vehicle mounted high-voltage plastic shell connector, with EMI shielded, suitable for high current/ high voltage application

Features:

Touch Proof
Compact Robust Design ,Various Termination Options
EMI Shielded
Quick Lock and Press-to- Release Design
Competitive price from factory with Small MOQ to help you reduce inventories and avoid market risks;
Accept OEM & ODM for your customized requirement;

Application:

Battery Packs
High-voltage Distribution Box
Motor & Controller
Process Control/Automation
Heavy Equipment
PTC

Parameters:

Electrical Performance
Rated Current	20A/ 30A/ 45A/ 70A
Rated Voltage	1000V DC
Insulation Resistance	5000 mΩ Min (Dry) 200 mΩ Min (RH 95%)
Test Voltage	3000V AC
EMI Shielded	Yes
Mechanical Performance
Minimum Mating Cycles	500 times
Wire Range	2.5 mm²~10mm²
Environment Performance
Protection Grade	IP67B
Operation Temperature	-40 ℃ ~+125 ℃
Salt Spray Resistance	144H (Mating State)
Reference Standard
USCAR-2
USCAR-37
LV-215

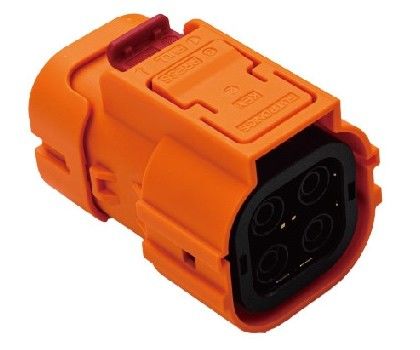

Product Pictures:

45A 4 Pin Power High Current Connector 500 Times Mechanical Life Touch proof 0

Drawings:

Socket

45A 4 Pin Power High Current Connector 500 Times Mechanical Life Touch proof 2

Plug

45A 4 Pin Power High Current Connector 500 Times Mechanical Life Touch proof 3

Company Profile

NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.

NeoPower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, NeoPower delivers top quality products and excellent services to customers around the world.

45A 4 Pin Power High Current Connector 500 Times Mechanical Life Touch proof 4

Certifications & Approvals

The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.

45A 4 Pin Power High Current Connector 500 Times Mechanical Life Touch proof 5
