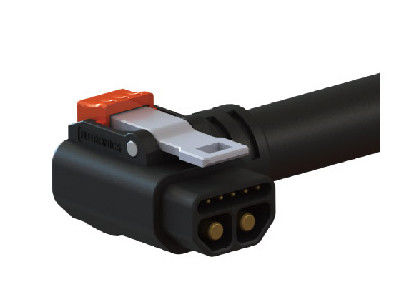

Multi Pin Low Voltage 300V DC Hybrid Power Connector IP54 Waterproof

Multi Pin Low Voltage 300V DC Hybrid Power Connector IP54 Waterproof
Multi Pin Low Voltage 300V DC Hybrid Power Connector IP54 Waterproof Multi Pin Low Voltage 300V DC Hybrid Power Connector IP54 Waterproof Multi Pin Low Voltage 300V DC Hybrid Power Connector IP54 Waterproof Multi Pin Low Voltage 300V DC Hybrid Power Connector IP54 Waterproof Multi Pin Low Voltage 300V DC Hybrid Power Connector IP54 Waterproof Multi Pin Low Voltage 300V DC Hybrid Power Connector IP54 Waterproof

Large Image :  Multi Pin Low Voltage 300V DC Hybrid Power Connector IP54 Waterproof

Product Details:
Place of Origin: China
Brand Name: NeoPower
Certification: CE IEC FCC RoHs
Model Number: FLV2808
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable according to Quantities
Packaging Details: Standard Export Carton Box
Delivery Time: 3~7 days
Payment Terms: Western Union, MoneyGram
Supply Ability: 50000 per day

Multi Pin Low Voltage 300V DC Hybrid Power Connector IP54 Waterproof

Description
Rated Current: 20A/ 30A/ 40A/ 55A Rated Voltage: 300V DC
Insulation Resistance: 5000 MΩ Min (Dry) 200 MΩ Min (RH 95%) Test Voltage: 3000V AC
Minimum Mating Cycles: 3000 Times Wire Range: 2.5 Mm2/4mm2/6mm2/8mm2/AWG20
Protection Grade: IP54 Operation Temperature: -40 ℃ ~+125 ℃
Salt Spray Resistance: 48H (mating State) EMI Shielded: No
High Light:

IP54 hybrid power connector

,

300V DC hybrid power connector

,

IP54 multi pin power connector

Multi-Pin Hybrid Plug Socket Power Communication Signal Long Mating Life  Battery Pack Harness Connectors

Part No.:FLV 2808

Description:

This product is vehicle mounted low-voltage & signal hybrid connector,used for power and signal transmission between the vehicle charger, battery pack, high voltage distribution box, motor controller, motor, air conditioner, PTC and other components.

Features:

  • Touch Proof
  • Compact Robust Design ,Various Termination Options
  • EMI Shielded
  • Quick Lock and Press-to- Release Design
  • Competitive price from factory with Small MOQ to help you reduce inventories and avoid market risks;
  • Accept OEM & ODM for your customized requirement;

Application:

  • Battery Packs
  • High-voltage Distribution Box
  • Motor & Controller
  • Process Control/Automation
  • Heavy Equipment
  • PTC

Parameters:

Electrical Performance
Rated Current 20A /30A/ 40A/ 55A
Rated Voltage 300V DC
Insulation Resistance

5000 mΩ Min (Dry)

200 mΩ Min (RH 95%)

Test Voltage 500V AC
EMI Shielded Yes
Mechanical Performance
Minimum Mating Cycles 3000 times
Wire Range 2.5 mm2/4mm2/6mm2/8mm2/AWG20
Environment Performance
Protection Grade IP54
Operation Temperature -40 ℃ ~+125 ℃
Salt Spray Resistance 48H (Mating State)
Reference Standard
USCAR-2
USCAR-37



Product Pictures:

Multi Pin Low Voltage 300V DC Hybrid Power Connector IP54 Waterproof 0Multi Pin Low Voltage 300V DC Hybrid Power Connector IP54 Waterproof 1





Multi Pin Low Voltage 300V DC Hybrid Power Connector IP54 Waterproof 2









Drawings:



Socket

Multi Pin Low Voltage 300V DC Hybrid Power Connector IP54 Waterproof 3



Plug A

Multi Pin Low Voltage 300V DC Hybrid Power Connector IP54 Waterproof 4

Plug B

Multi Pin Low Voltage 300V DC Hybrid Power Connector IP54 Waterproof 5







Company Profile



NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.

NeoPower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, NeoPower delivers top quality products and excellent services to customers around the world.

Multi Pin Low Voltage 300V DC Hybrid Power Connector IP54 Waterproof 6



Certifications & Approvals



The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.

Multi Pin Low Voltage 300V DC Hybrid Power Connector IP54 Waterproof 7Multi Pin Low Voltage 300V DC Hybrid Power Connector IP54 Waterproof 8Multi Pin Low Voltage 300V DC Hybrid Power Connector IP54 Waterproof 9Multi Pin Low Voltage 300V DC Hybrid Power Connector IP54 Waterproof 10
