IP67 2 Pin Waterproof Straight Connector Plug , 2 Pin Right Angle Battery Connector

IP67 2 Pin Waterproof Straight Connector Plug , 2 Pin Right Angle Battery Connector
IP67 2 Pin Waterproof Straight Connector Plug , 2 Pin Right Angle Battery Connector IP67 2 Pin Waterproof Straight Connector Plug , 2 Pin Right Angle Battery Connector IP67 2 Pin Waterproof Straight Connector Plug , 2 Pin Right Angle Battery Connector IP67 2 Pin Waterproof Straight Connector Plug , 2 Pin Right Angle Battery Connector IP67 2 Pin Waterproof Straight Connector Plug , 2 Pin Right Angle Battery Connector

Large Image :  IP67 2 Pin Waterproof Straight Connector Plug , 2 Pin Right Angle Battery Connector

Product Details:
Place of Origin: China
Brand Name: Neopower
Certification: CE IEC FCC RoHs
Model Number: C1176
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable according to Quantities
Packaging Details: Standard Export Carton Box
Delivery Time: 3~7 days
Payment Terms: Western Union, MoneyGram
Supply Ability: 50000 per day

IP67 2 Pin Waterproof Straight Connector Plug , 2 Pin Right Angle Battery Connector

Description
Rated Current: 40A (6mm2) ,30A (4mm2), 20A (2.5mm2) Rated Voltage: 800V DC
Insulation Resistance: ≥3000mΩ(power)≥1000mΩ(signal) Dielectric Withstanding Voltage: 3000V AC (power), 1000V AC(signal)
Wire Range: 2.5 Mm2~6mm2 IP Rating: IP67&IP6K9K
Operation Temperature: -40 ℃ ~+125 ℃ Salt Spray Resistance: 144H (mating State)
HVIL: Yes Shell: Plastic, Metal
Angle: Straight Angle, Right Angle
High Light:

200A 2 pin waterproof connector plug

,

200A 2 pin battery connector

,

IP67 2 pin waterproof connector plug

IP67 2 Pin Waterproof Straight Connector Plug , 2 Pin Right Angle Battery Connector

Part No.: C1176

Features:

  • Secondary lock function

  • Cable range: 2.5~6mm2

  • Poka-yoke

  • HVIL

  • Touch-proof

  • 360°shielding

Application:

  • OBC
  • DC-DC
  • PTC
  • PDU
  • Air Conditioning

Specifications:

  • Rated current: 40A (6mm2) ,30A (4mm2), 20A (2.5mm2)
  • Rated voltage:800V
  • Insulation resistance: ≥3000mΩ(power); ≥1000mΩ(signal)
  • Dielectric withstanding voltage:3000V AC (power), 1000V AC(signal)
  • Temperature Range: -40~+125 ℃
  • IP Rating: IP67&IP6K9K

Parameters:

Rated Current: 40A (6mm2), 30A (4mm2), 20A (2.5mm2)
Rated Voltage:

800V

Insulation Resistance: ≥3000mΩ(power)≥1000mΩ(signal)
Dielectric Withstanding Voltage: 3000V AC (power), 1000V AC(signal)
Temperature Range: -40~+125 ℃
IP Rating: IP67&IP6K9K
Application:

OBCDC-DC, PTC, PDU, Air Conditioning



Product Pictures:

IP67 2 Pin Waterproof Straight Connector Plug , 2 Pin Right Angle Battery Connector 0



Drawings:

C1176 2pin 90° Right Angle plug

IP67 2 Pin Waterproof Straight Connector Plug , 2 Pin Right Angle Battery Connector 1



C1176 2pin 180°plug

IP67 2 Pin Waterproof Straight Connector Plug , 2 Pin Right Angle Battery Connector 2

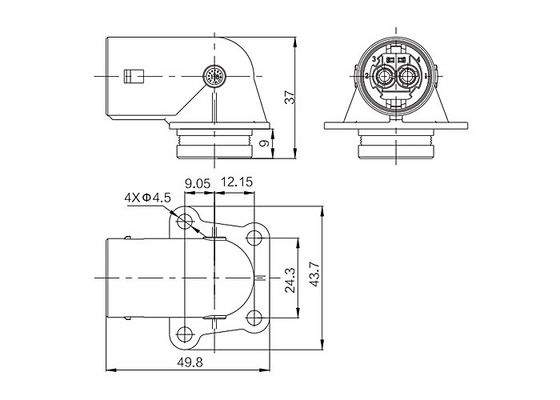

C1176 2pin Receptacle
IP67 2 Pin Waterproof Straight Connector Plug , 2 Pin Right Angle Battery Connector 3

C1176 2pin Receptacle Mounting Hole Design

IP67 2 Pin Waterproof Straight Connector Plug , 2 Pin Right Angle Battery Connector 4



Company Profile

NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.

Neopower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, Neopower delivers top quality products and excellent services to customers around the world.

IP67 2 Pin Waterproof Straight Connector Plug , 2 Pin Right Angle Battery Connector 5



Certifications & Approvals



The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.

IP67 2 Pin Waterproof Straight Connector Plug , 2 Pin Right Angle Battery Connector 6IP67 2 Pin Waterproof Straight Connector Plug , 2 Pin Right Angle Battery Connector 7IP67 2 Pin Waterproof Straight Connector Plug , 2 Pin Right Angle Battery Connector 8IP67 2 Pin Waterproof Straight Connector Plug , 2 Pin Right Angle Battery Connector 9
