Touch Proof 144H 50mm2 EV Battery Connector IEC Certification

Large Image : Touch Proof 144H 50mm2 EV Battery Connector IEC Certification

Product Details:

Place of Origin:	China
Brand Name:	Neopower
Certification:	CE IEC FCC RoHs
Model Number:	C959

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	Negotiable according to Quantities
Packaging Details:	Standard Export Carton Box
Delivery Time:	3~7 days
Payment Terms:	Western Union, MoneyGram
Supply Ability:	50000 per day

Contact Now

Touch Proof 144H 50mm2 EV Battery Connector IEC Certification

Description

Rated Current:	250A (70mm2), 200A (50mm2), 150A (35mm2)	Rated Voltage:	800V DC
Insulation Resistance:	≥5000mΩ(power) ≥1000mΩ(signal)	Dielectric Withstanding Voltage:	3000V AC (power), 1000V AC(signal)
Wire Range:	35 Mm2~70mm2	IP Rating:	IP67
Operation Temperature:	-40 ℃ ~+125 ℃	Salt Spray Resistance:	144H (mating State)
HVIL:	Yes	Shell:	Plastic, Metal
Angle:	Straight Angle, Right Angle
High Light:	50mm2 EV Battery Connector , IEC EV Battery Connector , 50mm2 touch proof connector

Touch Proof 144H 50mm2 EV Battery Connector IEC Certification

Part No.: 1127

Features:

Secondary lock function
Cable range: 35~70mm²
Poka-yoke
HVIL
Touch-proof
360°shielding

Application:

PDU
MCU
Battery Pack

Specifications:

Rated current: 250A (70mm²), 200A (50mm²), 150A (35mm²)
Rated voltage: 800V
Insulation resistance: ≥5000mΩ(power) ≥1000mΩ(signal)
Dielectric withstanding voltage:3000V AC (power), 1000V AC(signal)
Temperature Range: -40~+125 ℃
IP Rating: IP67

Parameters:

Rated Current:	250A (70mm²), 200A (50mm²), 150A (35mm²)
Rated Voltage:	1000V
Insulation Resistance:	≥4000mΩ(power)≥1000mΩ(signal)
Dielectric Withstanding Voltage:	3500V AC (power), 1000V AC(signal)
Temperature Range:	-40~+125 ℃
IP Rating:	IP67&IP6K9K,IPXXB
Application:	Motor controller, battery, driving system, charging system

Product Pictures:

Touch Proof 144H 50mm2 EV Battery Connector IEC Certification 0

Drawings:

C959 2pin 90° Right Angle plug

C959 2pin Receptacle

Touch Proof 144H 50mm2 EV Battery Connector IEC Certification 2

C959 2pin 180°plug
Touch Proof 144H 50mm2 EV Battery Connector IEC Certification 3

C959 3pin 180°plug

Touch Proof 144H 50mm2 EV Battery Connector IEC Certification 4

C959 3pin 90° Right Angle plug

Touch Proof 144H 50mm2 EV Battery Connector IEC Certification 5

C959 3pin Receptacle

Touch Proof 144H 50mm2 EV Battery Connector IEC Certification 6

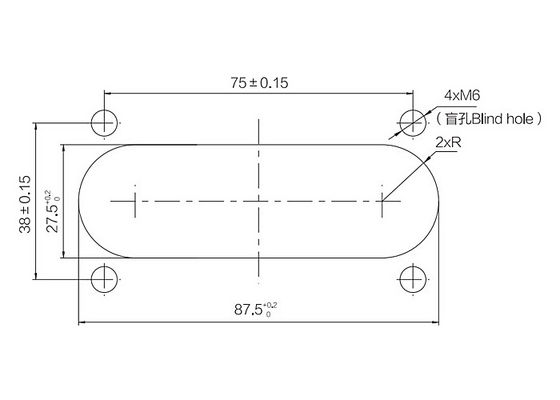

C959 2pin Mounting Hole Design

C959 3pin Mounting Hole Design

Touch Proof 144H 50mm2 EV Battery Connector IEC Certification 8
