Product Details:
|
| Size: | 1*2.5 Mm2/ 1*4.0 Mm2/1*6.0 Mm2/1*10.0 Mm2/1*16.0 Mm2 | Cross Section: | 2.5 Mm2/ 4.0 Mm2/6.0 Mm2/10.0 Mm2/16.0 Mm2 |
|---|---|---|---|
| Conductor Structure: | 48*φ0.25mm/56*φ0.285mm/81*φ0.30mm/74*φ0.40mm/224*φ0.30mm | Outer Diameter: | 5.4mm/6.0mm/7.0mm/7.8mm/q0.2mm±0.2 |
| Max. DC Resistance At 20℃: | 8.21Ω/km; 5.09Ω/km; 3.39Ω/km; 1.95Ω/km; 1.24Ω/km | Rated Current: | 30 A/ 50 A/ 70 A/ 95 A/ 132 A |

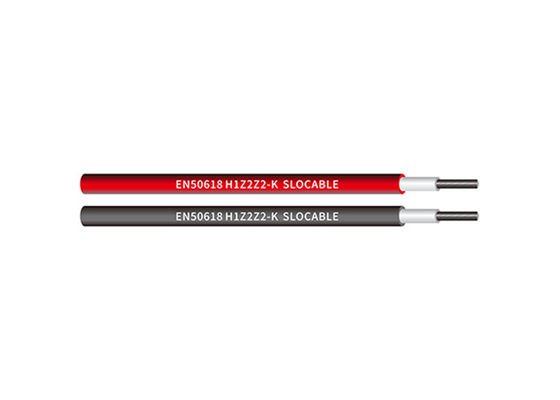

| High Light: | 1500V DC pv cable assembly,30A pv cable assembly,1500V DC pv cable 4mm2 |
||
| Size | Cross Section | Conductor Structure | Outer Diameter | Max. DC Resistance at 20℃ | Rated Current |
| mm2 | mm2 | mm | mm±0.2 | Ω/km | A |
| 1*2.5 mm2 | 2.5 mm2 | 48*φ0.25mm | 5.4mm±0.2 | 8.21Ω/km | 30 A |
| 1*4.0 mm2 | 4.0 mm2 |
56*φ0.285mm
|
6.0mm±0.2 | 5.09Ω/km | 50 A |
| 1*6.0 mm2 |
6.0 mm2
|
81*φ0.30mm | 7.0mm±0.2 | 3.39Ω/km |
70 A
|
| 1*10.0 mm2 | 10.0 mm2 | 74*φ0.40mm | 7.8mm±0.2 |
1.95Ω/km
|
95 A
|
| 1*16.0 mm2 | 16.0 mm2 |
224*φ0.30mm
|
10.2mm±0.2 |
1.24Ω/km
|
132 A |
Drawings:
Company Profile
NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.
Neopower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, Neopower delivers top quality products and excellent services to customers around the world.
Certifications & Approvals
The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.
