Product Details:
|
| Rated Current: | 25A (2.5mm2), 30A (4mm2), 35A (6mm2) | Rated Voltage: | 1000V DC |
|---|---|---|---|
| Insulation Resistance: | ≥5000mΩ(power)≥1000mΩ(signal) | Dielectric Withstanding Voltage: | 3500V AC (power), 1000V AC(signal) |
| Wire Range: | 2.5 Mm2~6mm2 | IP Rating: | P67&IP6K9K,IPXXB |
| Operation Temperature: | -40 ℃ ~+125 ℃ | Salt Spray Resistance: | 144H (mating State) |
| HVIL: | Yes | Shell: | Plastic |
| High Light: | 6Pin electric vehicle plug,plastic shell electric vehicle plug,6Pin pdu power connector |
||
Secondary lock function
Cable range: 25~50mm2
Poka-yoke
HVIL
Touch-proof
360°shielding
| Rated Current: | 25A (2.5mm2), 30A (4mm2), 35A (6mm2) |
| Rated Voltage: |
1000V |
| Insulation Resistance: | ≥5000mΩ(power); ≥1000mΩ(signal) |
| Dielectric Withstanding Voltage: | 3500V AC (power), 1000V AC(signal) |
| Temperature Range: | -40~+125 ℃ |
| IP Rating: | IP67&IP6K9K,IPXXB |
| Application: | PDU |
Drawings:
C1163 6pin 180° straight plug
C 1163 6 pin receptacle

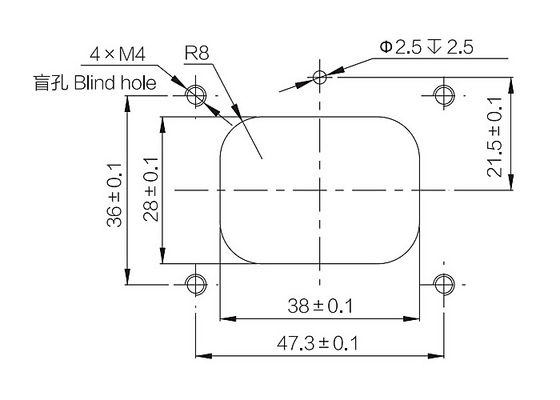

C 1163 6 pin mounting interface design
NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.
Neopower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, Neopower delivers top quality products and excellent services to customers around the world.
The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.
