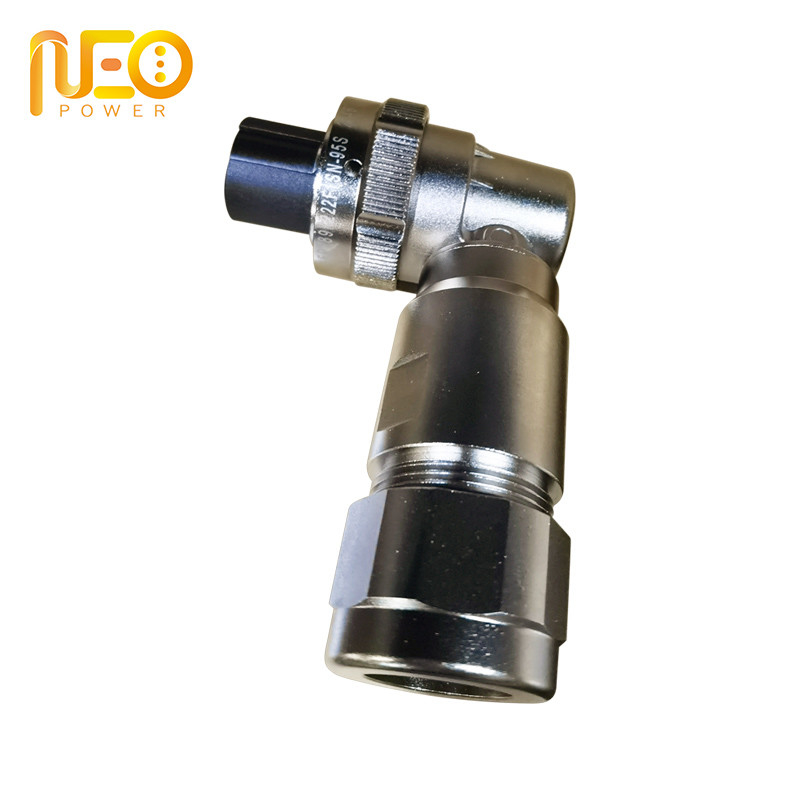

Single Pin 16mm2 EV Battery Connector Metal Plug Large Current Transmission

Single Pin 16mm2 EV Battery Connector Metal Plug Large Current Transmission
Single Pin 16mm2 EV Battery Connector Metal Plug Large Current Transmission

Large Image :  Single Pin 16mm2 EV Battery Connector Metal Plug Large Current Transmission

Product Details:
Place of Origin: China
Brand Name: Neopower
Certification: USCAR-2/ USCAR-37/ RoHS/ MIL-C-26482
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable according to Quantities
Packaging Details: Standard Export Carton Box
Delivery Time: 3~7 days
Payment Terms: Western Union, MoneyGram
Supply Ability: 50000 per day

Single Pin 16mm2 EV Battery Connector Metal Plug Large Current Transmission

Description
Rated Current: 200A MAX Rated Voltage: 800V DC
Insulation Resistance: 5000MΩ(@25℃ 40%-60%RH) Dielectric Withstanding Voltage: 2500V DC
Wire Range: 16m㎡-50m㎡ IP Rating: IP67
Operation Temperature: -40 ℃ ~+125 ℃ Salt Spray Resistance: 48H
HVIL: Yes Shell: Metal
High Light:

IP67 EV Battery Connector

,

EV Battery Connector 16mm2

,

Single Pin High Voltage Interlock Connector

Single pin 16m㎡ metal Plug-straight Large current Transmission Connector

Features:

  • Secondary lock function

  • Cable range: 16mm2~50mm2

  • Poka-yoke

  • HVIL

  • Touch-proof

  • 360°shielding

Application:

  • Motor controller
  • Lithium battery, lead-acid battery
  • Driving system
  • charging system

Specifications:

  • Rated current: 200A MAX
  • Rated voltage: 800V DC
  • Insulation resistance: 5000MΩ(@25℃ 40%-60%RH)
  • Dielectric withstanding voltage:2500V DC
  • Temperature Range: -40~+125 ℃
  • IP Rating: IP67

Parameters:

Rated Current: 200A MAX
Rated Voltage:

800V DC

Insulation Resistance: 5000MΩ(@25℃ 40%-60%RH)
Dielectric Withstanding Voltage: 2500V AC
Temperature Range: -40~+125 ℃
IP Rating: IP67
Application: Motor controller, battery, driving system, charging system



Product Pictures:

Single Pin 16mm2 EV Battery Connector Metal Plug Large Current Transmission 0









Drawings:

Single Pin 16mm2 EV Battery Connector Metal Plug Large Current Transmission 1Single Pin 16mm2 EV Battery Connector Metal Plug Large Current Transmission 2







Company Profile

NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.

Neopower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, Neopower delivers top quality products and excellent services to customers around the world.

Single Pin 16mm2 EV Battery Connector Metal Plug Large Current Transmission 3



Certifications & Approvals



The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.

Single Pin 16mm2 EV Battery Connector Metal Plug Large Current Transmission 4Single Pin 16mm2 EV Battery Connector Metal Plug Large Current Transmission 5Single Pin 16mm2 EV Battery Connector Metal Plug Large Current Transmission 6Single Pin 16mm2 EV Battery Connector Metal Plug Large Current Transmission 7
