Product Details:
|

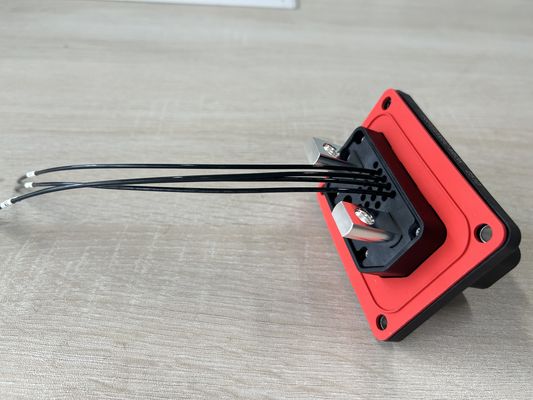

Dual-Port Hybrid Design: Combines 200A power terminals and multi-pin signal ports for simultaneous high-current and low-voltage control.
Touch-Proof & Poka-Yoke: Safe mating with anti-misalignment guides and shielded contacts to prevent accidental contact.
360° EMI Shielding: Ensures stable signal transmission in electrically noisy environments.
Robust Durability: IP67-rated housing and 500 mating cycles (power terminals) for harsh industrial or outdoor use.
| Rated Current: | 200A (Power Terminals) |
| Rated Voltage: | 1000V DC (Power), 100V DC (Signal) |
| Insulation Resistance: | ≥5000MΩ (Dry), ≥200MΩ (95% RH) |
| Testing Voltage: | Power 1500V AC |
| Temperature Range: | -40°C ~ +125°C |
| IP Rating: | IP67 (Fully Sealed in Mated State) |
| Salt Spray Resistance | 48H (Corrosion-Resistant Design) |
NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.
Neopower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, Neopower delivers top quality products and excellent services to customers around the world.
The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.
