15A 250V IEC C14 Power Inlet Socket with Integrated Boat Rocker Switch
Streamline your product design and assembly process with the YQNGQI ST-A01-003JD-020+5, a convenient and reliable 2-in-1 AC Power Inlet Socket featuring an integrated boat-style rocker switch. This component combines a standard IEC 60320 C14 appliance inlet with an easily accessible power switch, reducing panel space requirements, component count, and installation time. It's an ideal solution for various industrial equipment, power supplies, and appliances.
Reliable Electrical Performance
Engineered for dependable operation, this integrated socket and switch module meets common power requirements:
-
Standard Rating: Handles 15A at 250V AC, suitable for a wide range of equipment globally.
-
Safety Grounding: Includes a standard grounding connection for enhanced electrical safety, essential for industrial and commercial applications.
-
Integrated Control: The built-in rocker switch provides convenient ON/OFF control directly at the power entry point.
Durable Construction and Easy Installation
Built for longevity and ease of use in demanding environments:
-
High-Quality Material: Constructed from robust Nylon PA66, known for its good mechanical strength, temperature resistance, and insulating properties.
-
Long Socket Life: The C14 inlet is designed for durability, rated for over 20,000 insertion and removal cycles.
-
Snap-in Panel Mounting: Features a "detachable type" or snap-in design for quick and effortless installation into standard panel cutouts (likely 45.7*21.7mm, please verify cutout dimensions). No screws required.
Versatile Applications
The combination of a standard C14 inlet and an integrated switch makes this component highly versatile for:
-
Industrial Control Panels
-
Power Supply Units (PSUs)
-
Test and Measurement Equipment
-
Audio/Video Equipment
-
Network Devices
-
Medical Devices (compliance permitting)
-
General Purpose Appliances
Customization and Availability
-
Logo Customization: Supports customized logos to align with your brand identity.
-
Sample Availability: Samples are available upon request for evaluation and testing.
Technical Specifications Summary
| Socket Standard |
IEC 60320 C14 |
| Switch Type |
Rocker Switch (Boat Shape) |
| Rated Voltage |
250V AC |
| Rated Current |
15A |
| Mounting Type |
Panel Mount, Snap-in |
| Housing Material |
Nylon PA66 |
| Grounding |
Standard Grounding |
| Socket Mating Cycles |
> 20,000 |
| Application |
Industrial, Power Supplies, Equipment |
| Model Number |
ST-A01-003JD-020+5 |
| Customization |
Logo |
Simplify your power entry design with the reliable and convenient YQNGQI IEC C14 Inlet Socket with Integrated Rocker Switch. Its robust construction, easy installation, and combined functionality offer significant advantages for your equipment.
[Contact Us Today for Samples and Quotes] [Explore More Power Entry Modules]

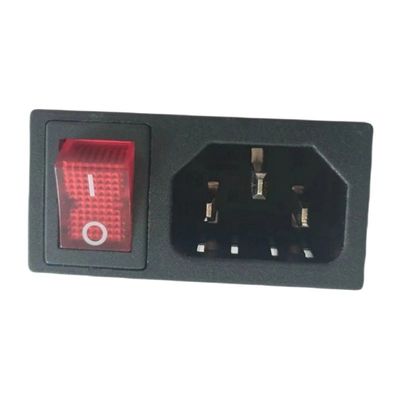

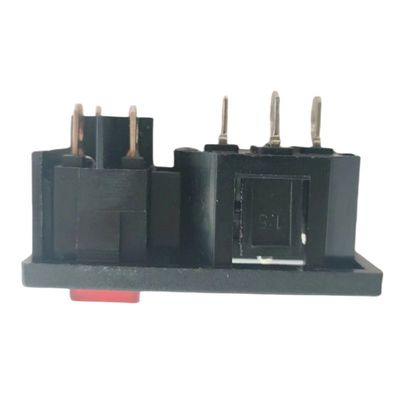

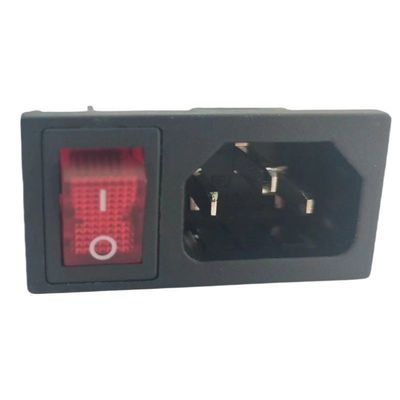

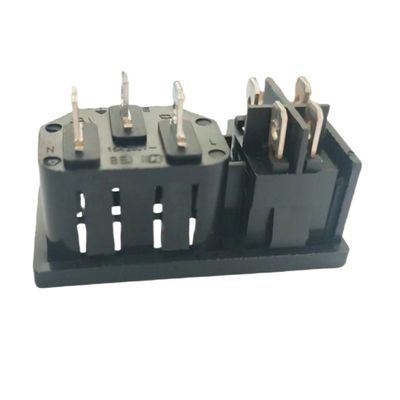

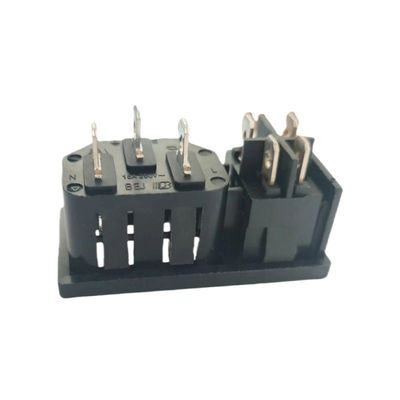

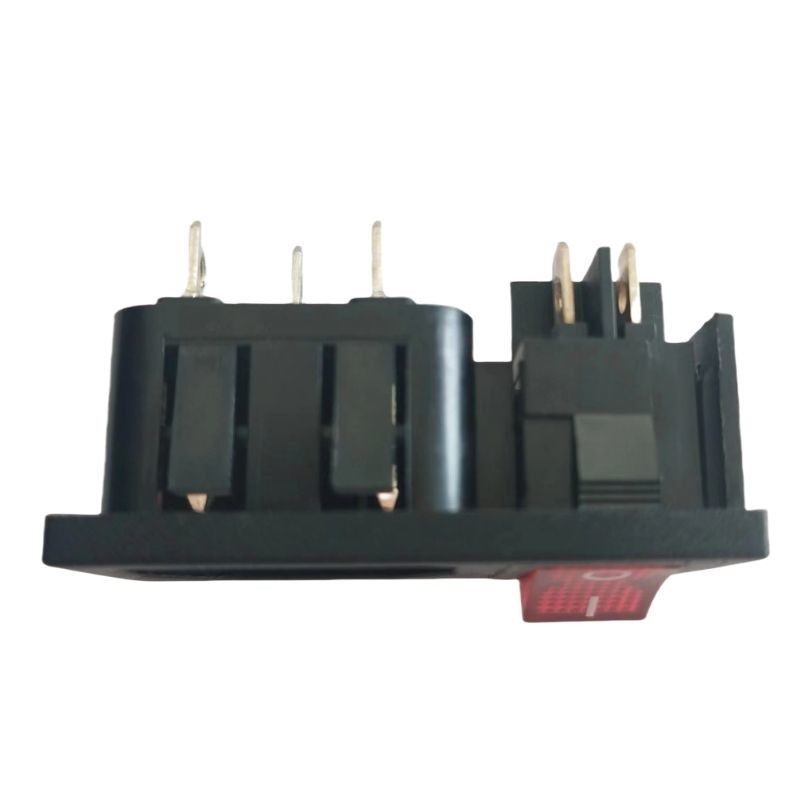

Product Pictures:
