Product Details:
|
Key Features:
Product Description

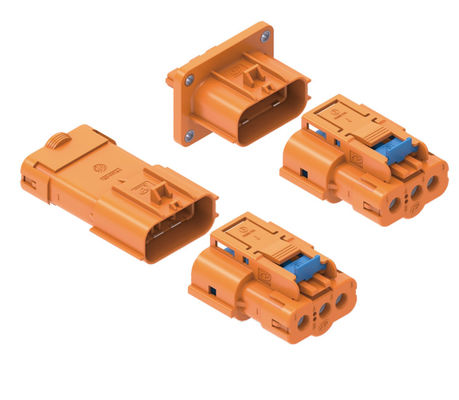

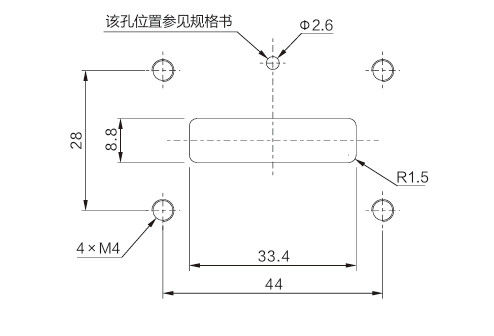

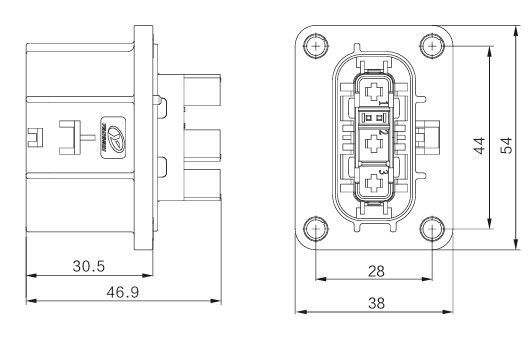

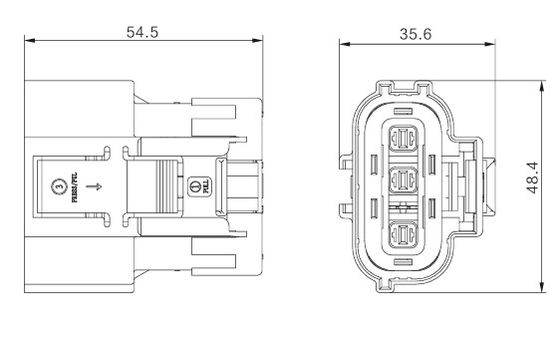

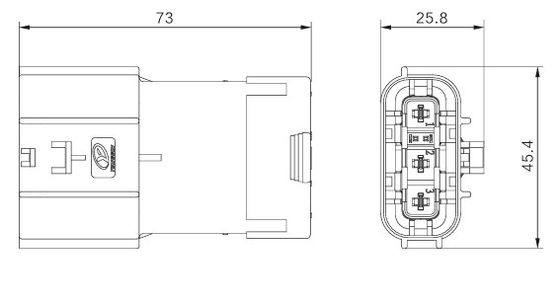

The Neopower 3-Pin 800V 16A Automotive Power & Signal Connector is engineered to deliver exceptional performance and unwavering reliability for critical automotive and high-voltage applications. This advanced 3 pin connector system, encompassing both male and female 3 pin connector designs, provides a secure and durable interconnection for power and signal transmission. Its robust construction and comprehensive feature set make it an ideal choice when a dependable 3 pin connector automotive solution is paramount.
Built to withstand the rigorous demands of modern vehicle systems, this connector excels in applications like On-Board Chargers (OBC), oil and air pump controllers, and Power Distribution Units (PDU). The integration of High Voltage Interlock (HVIL), touch-proof construction, and a Poka-yoke design ensures maximum safety during handling and operation, preventing accidental exposure to high voltages and incorrect connections. The secondary lock function provides an added layer of security, crucial in high-vibration automotive environments, ensuring the 3 pin connector plug remains firmly mated.
This connector is designed to accommodate specific 3 pin connector wire and 3 pin connector cable sizes, with power contacts suitable for 2.5mm² cables carrying up to 16A, and signal contacts for 0.5mm² cables up to 2A. Its exceptional IP67 and IP6K9K waterproof rating, combined with a wide operating temperature range (-40°C to +125°C) and 360° shielding, guarantees consistent performance even in challenging conditions. Choose the Neopower 3-Pin Automotive Power & Signal Connector for a cutting-edge, safe, and reliable connection solution for your high-voltage needs.
| Attribute | Specification |
| Brand | Neopower |
| Product Type | 3-Pin Hybrid Connector (2 Power Pins + 1 Signal Pin) |
| Cable Range (Power Pins) | 2.5mm² |
| Cable Range (Signal Pin) | 0.5mm² |
| Rated Current (Power Pins) | 16A |
| Rated Current (Signal Pin) | 2A |
| Rated Voltage (Power Pins) | 800V (AC/DC) |
| Rated Voltage (Signal Pin) | 24V (AC/DC) |
| Dielectric Withstanding Voltage (Power Pins, AC 50Hz, Normal) | 3000V |
| Dielectric Withstanding Voltage (Signal Pin, AC 50Hz, Normal) | 1000V |
| Secondary Lock Function | Yes |
| Poka-yoke (Mis-mating Prevention) | Yes |
| High Voltage Interlock (HVIL) | Yes |
| Touch-proof Design | Yes (Complies with IPXXB) |
| Shielding | 360° Shielding |
| Operating Temperature Range | -40°C to +125°C |
| IP Rating | IP67 & IP6K9K (Dust tight, Waterproof under specified conditions), IPXXB |
| Target Applications | On-Board Chargers (OBC), Oil Pump Controllers, Air Pump Controllers, Power Distribution Units (PDU), Battery Disconnect Units (BDU) |
Frequently Asked Questions (FAQs) - Neopower 3-Pin Automotive Connector
Q1: What are the primary applications for the Neopower 3-Pin Connector?
A: This connector is specifically engineered for robust performance in demanding automotive environments and high-voltage systems. Key applications include On-Board Chargers (OBC), Oil Pump Controllers, Air Pump Controllers, Power Distribution Units (PDU), and Battery Disconnect Units (BDU).
Q2: What are the voltage and current ratings for the power and signal pins?
A: The connector features a hybrid design:
Q3: Is the Neopower 3-Pin Connector waterproof and suitable for harsh environments?
A: Yes, it is designed for durability. The connector boasts an IP67 and IP6K9K rating, making it dust-tight and protected against water immersion and high-pressure water jets. Combined with its operating temperature range of -40°C to +125°C, it is well-suited for harsh automotive conditions.
Q4: What safety features are integrated into this connector?
A: Safety is a core design principle. The connector includes:
Q5: What cable sizes are compatible with this connector?
A: The connector is optimized for:
Q6: How does the 360° shielding benefit my application?
A: The 360° shielding provides comprehensive protection against electromagnetic interference (EMI) and radio frequency interference (RFI). This is crucial in modern vehicles with numerous electronic systems, as it helps maintain signal integrity for reliable data transmission and system operation.
Q7: What is the significance of the Poka-yoke and Secondary Lock features?
A:
Q8: Can this connector withstand high voltages safely?
A: Absolutely. The power pins have a dielectric withstanding voltage of 3000V AC (50Hz, normal conditions), and the signal pins withstand 1000V AC (50Hz, normal conditions). These ratings, along with features like HVIL and touch-proof design, ensure high reliability and safety in high-voltage scenarios.
