Product Details:
|
The Neopower XT60 2+2 Plug is specifically engineered for high-performance electric motorcycles and new energy vehicles, delivering reliable power and signal transmission in a compact, lightweight form. Built with high-quality brass contacts and silver-plated coating, it ensures superior conductivity and minimizes power loss. Its IP67 waterproof rating and PA66+30%GF housing provide excellent protection against water, dust, high temperatures, and corrosion, making it ideal for demanding outdoor and high-vibration environments. Operating efficiently from -40°C to 100°C, this connector offers exceptional durability and stability even in extreme conditions. The flexible wire compatibility (10AWG-12AWG & 22-24AWG) allows versatile integration into various EV systems, including battery packs and charging interfaces. With a long service life, robust construction, and secure locking mechanism, the Neopower XT60 2+2 Plug is the perfect choice for EV applications requiring space efficiency without compromising performance.
| Specification | Details |
|---|---|
| Rated Current | 30A / 10A |
| Rated Voltage | DC 500V |
| Overvoltage Rating | — |
| Pollution Level | II |
| Housing Material | PA66+30%GF |
| Surface Coating | Silver plated |
| Hardware Materials | Brass |
| Wire Range | 10AWG-12AWG / 22-24AWG |
| Waterproof Grade | IP67 |
| Operating Temp | -40°C ~ 100°C |
| Salt Spray Resistance | 48h |
| Fire Degree | UL94-V0 |

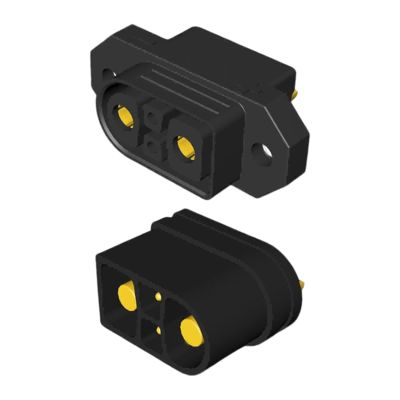

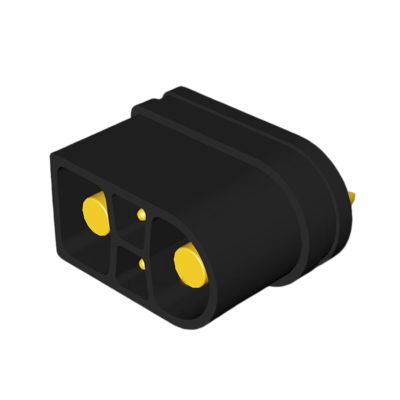

Product Pictures:
Company Profile
NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.
NeoPower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, NeoPower delivers top quality products and excellent services to customers around the world.
Certifications & Approvals
The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.
