Product Details:
|
| Rated Current: | 5A~10A | Rated Voltage: | 24V DC |
|---|---|---|---|
| Insulation Resistance: | ≥5000mΩ | Dielectric Withstanding Voltage: | 1000V AC |
| Wire Range: | 0.5 Mm2~1.5 Mm2 | IP Rating: | IP67 |
| Operation Temperature: | -40 ℃ ~+125 ℃ | Salt Spray Resistance: | 144H (mating State) |
| HVIL: | Yes | Shell: | Plastic |
| Number Of Pins: | 32 Pins | ||
| High Light: | insulation resistant transmission cable connector,CE transmission cable connector,insulation resistant rectangular power connector |
||
Secondary lock function
Cable range: 0.5~1.5mm2
Poka-yoke
| Rated Current: | 5A~10A |
| Rated Voltage: |
24V |
| Insulation Resistance: | ≥5000mΩ(power) |
| Dielectric Withstanding Voltage: | 1000V AC |
| Temperature Range: | -40~+125 ℃ |
| IP Rating: | IP67 |
| Application: |
Signal System |
| Mechanical Life: | ≥ 50times |
| Number of Pins | 32 pins |
S1024 32pin 180°plug
S1024 32pin Receptacle

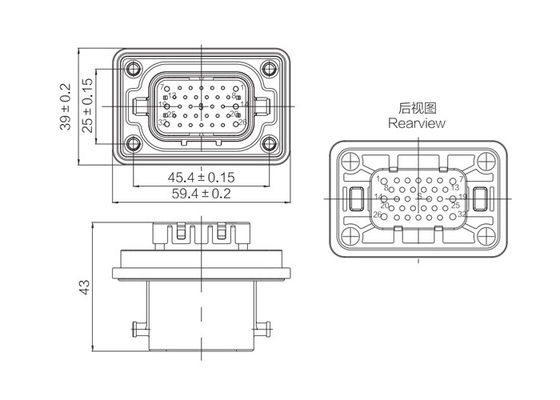

S1024 32pin Pole Mounting Design
NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.
Neopower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, Neopower delivers top quality products and excellent services to customers around the world.
The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.
