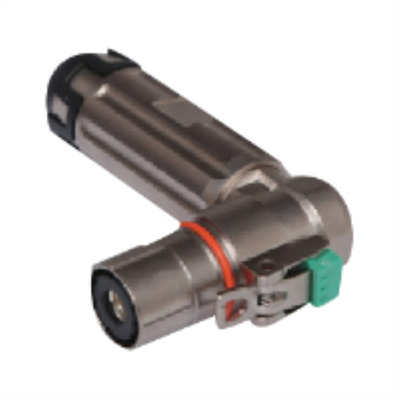

RoHs Approved Single Pin 200A Right Angle Circular Connector Used For Battery Pack

RoHs Approved Single Pin 200A Right Angle Circular Connector Used For Battery Pack
RoHs Approved Single Pin 200A Right Angle Circular Connector Used For Battery Pack RoHs Approved Single Pin 200A Right Angle Circular Connector Used For Battery Pack

Large Image :  RoHs Approved Single Pin 200A Right Angle Circular Connector Used For Battery Pack

Product Details:
Place of Origin: China
Brand Name: Neopower
Certification: USCAR-2/ USCAR-37 RoHS LV215
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable according to Quantities
Packaging Details: Standard Export Carton Box
Delivery Time: 3~7 days
Payment Terms: Western Union, MoneyGram
Supply Ability: 50000 per day

RoHs Approved Single Pin 200A Right Angle Circular Connector Used For Battery Pack

Description
Rated Current: 200A MAX Rated Voltage: 1000V DC
Insulation Resistance: 5000MΩ(@25℃ 40%-60%RH) Dielectric Withstanding Voltage: 3000V DC
Wire Range: 16m㎡-50m㎡ IP Rating: IP67
Operation Temperature: -40 ℃ ~+125 ℃ Salt Spray Resistance: 48H
HVIL: Yes Shell: Metal
High Light:

Single Pin Right Angle Circular Connector

,

200A Right Angle Circular Connector

,

RoHs EV Battery Connector

Single pin 200A Right Angle Plug metal shell Vehicle Battery Connector

Features:

  • Secondary lock function

  • Cable range: 16mm2~50mm2

  • Poka-yoke

  • HVIL

  • Touch-proof

  • 360°shielding

Application:

  • Motor controller
  • Lithium battery, lead-acid battery
  • Driving system
  • charging system

Specifications:

  • Rated current: 200A
  • Rated voltage: 1000V DC
  • Insulation resistance: 5000MΩ(@25℃ 40%-60%RH)
  • Dielectric withstanding voltage:3000V DC
  • Temperature Range: -40~+125 ℃
  • IP Rating: IP67

Parameters:

Rated Current: 200A MAX
Rated Voltage:

1000V DC

Insulation Resistance: 5000MΩ(@25℃ 40%-60%RH)
Dielectric Withstanding Voltage: 3000V AC
Temperature Range: -40~+125 ℃
IP Rating: IP67
Application: Motor controller, battery, driving system, charging system



Product Pictures:

RoHs Approved Single Pin 200A Right Angle Circular Connector Used For Battery Pack 0









Drawings:



RoHs Approved Single Pin 200A Right Angle Circular Connector Used For Battery Pack 1RoHs Approved Single Pin 200A Right Angle Circular Connector Used For Battery Pack 2RoHs Approved Single Pin 200A Right Angle Circular Connector Used For Battery Pack 3





Company Profile

NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.

Neopower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, Neopower delivers top quality products and excellent services to customers around the world.

RoHs Approved Single Pin 200A Right Angle Circular Connector Used For Battery Pack 4



Certifications & Approvals



The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.

RoHs Approved Single Pin 200A Right Angle Circular Connector Used For Battery Pack 5RoHs Approved Single Pin 200A Right Angle Circular Connector Used For Battery Pack 6RoHs Approved Single Pin 200A Right Angle Circular Connector Used For Battery Pack 7RoHs Approved Single Pin 200A Right Angle Circular Connector Used For Battery Pack 8
