|Number Of Pins (Poles)t:||1 Pins||Terminal Size:||8mm|
|Shell Materials:||Plastic||Plug Type:||Straight|
|CPA:||With||Keyway /Poka-yoke:||A:Black, B:Red, C: White, D:Green, E: Blue, F:Brown, G: Purple|
|Cable Connection Method:||B: Busbar, T: Threaded, C:Crimping||Threaded Hole Size (Busbar & Threaded):||M5*0.8 Thread|
|EMI Shielded:||Optional||Insulation Resistance:||＞200mΩ|
|Rated Voltage:||1000VDC/AC||Rated Current:||150A/35mm2, 200A/50mm2|
|Dielectric Voltage:||3500VAC/6000VDC||Shielded Efficiency:||70dB( 10KHz-5Mhz) 65 DB(5MHz-500MHz)|
|HVIL:||Optional||Mating Cycle:||≥100 Times|
|Applicable Cable Size:||35mm2, 50mm2||Vibration:||LV215|
|IP Grade (mated):||IP 6K9K/IPX8/IPXXD||IP Grade (unmated):||IPXXB|
|Touch Proof:||DIN EN60529||Operational Temp.:||-40℃ ~125℃|
|Application:||Battery Pack, Motor, PDU, Charging Systems, Inverters|

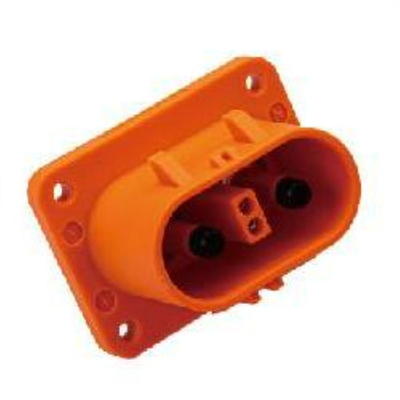

8mm Waterproof Battery Connectors,
Waterproof Battery Connectors CE,
HVIL 1 Pin Wire Connector
Part No.: NPFPPS1P8.0
This product is vehicle mounted high-voltage plastic shell connector, suitable for lithium battery packs for electrical motorcycle, scooter, marine, boat, RV application
What is a waterproof connector?
Waterproof connectors are designed with specific sealing o-rings to prevent water ingress. They are suitable for outdoor and harsh environments and include wireless telecommunications antennas, radio equipment, tactical radios and outdoor sensors.
|Number of Pins (Poles)||1 pin|
|Keyway /Poka-yoke||A:Black, B:Red, C: White, D:Green, E: Blue, F:Brown, G: Purple|
|Cable Connection Method||B: Busbar, T: Threaded, C:Crimping|
|Threaded Hole Size (Busbar & Threaded)||M5*0.8 thread|
|Rated Current||150A/ 35mm2, 200A/50mm2|
|Shielded Efficiency||70dB( 10KHz-5Mhz) 65 dB(5MHz-500MHz)|
|Mating Cycle||≥100 times|
|Applicable Cable Size||35mm2, 50mm2|
|IP Grade (mated)||IP 6K9K/IPX8/IPXXD|
|IP Grade (unmated)||IPXXB|
|Touch Proof||DIN EN60529|
|Operational Temp.||-40℃ ~125℃|
|Battery Pack, Motor, PDU, Charging Systems, Inverters|
NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.
NeoPower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, NeoPower delivers top quality products and excellent services to customers around the world.
Certifications & Approvals
The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.
