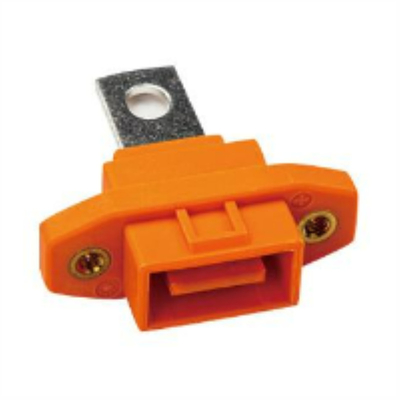

UV Resistant Waterproof Battery Connectors UL94V-0 High Current Receptacle

UV Resistant Waterproof Battery Connectors UL94V-0 High Current Receptacle
UV Resistant Waterproof Battery Connectors UL94V-0 High Current Receptacle

Large Image :  UV Resistant Waterproof Battery Connectors UL94V-0 High Current Receptacle

Product Details:
Place of Origin: China
Brand Name: NeoPower
Certification: CE IEC FCC RoHs
Model Number: NMSDS
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable according to Quantities
Packaging Details: Standard Export Carton Box
Delivery Time: 3~7 days
Payment Terms: Western Union, MoneyGram
Supply Ability: 50000 per day

UV Resistant Waterproof Battery Connectors UL94V-0 High Current Receptacle

Description
Receptacle Installation Method: Rear CPA: With
Keyway /Poka-yoke: With Flammability: UL94V-0
EMI Shielded: Optional Insulation Resistance: >200mΩ
Rated Voltage: 690 VDC/AC Rated Current: 80A-400A (depends On Fuse)
Fuse Brand: B: Bussmann; S: Sinofuse; C: Cfriend Shunt: 200A
HVIL: Optional Mating Cycle: ≥500 Times
Vibration: LV215 IP Grade (mated): IP 6K9K/IPX8/IPXXD
IP Grade (unmated): IPXXB (Receptacle Only) Touch Proof: DIN EN60529 (Receptacle Only)
Operational Temp.: -40℃ ~125℃ Application: Battery Pack, Motor, PDU, Charging Systems
High Light:

Waterproof Battery Connectors UV Resistant

,

High Current Waterproof Battery Connectors

,

Waterproof High Current Battery Connector

High Current Manual Maintenance Service Disconnect Socket Receptacle Connector with Bussmann Sinofuse CFriend Fuse Shun



Part No.:NMSDS



Description:

This product is manual service Disconnect connectors

Features:
  • Compact design saves space
    HVIL optional, highest security
    Unique EMI shielding feature
    F1 class anti-ultraviolet
    Competitive factory price and small MOQ, help you reduce inventory and avoid market risk;
    Accept OEM & ODM to meet your customized requirements;

Application:

  • Battery Packs
  • High-voltage Distribution Box
  • Motor & Controller
  • Process Control/Automation
  • Heavy Equipment
  • PTC

Parameters:



Basic Feature
Receptacle Installation Method Rear
CPA With
Keyway /Poka-yoke With
Flammability UL94V-0
EMI Shielded Optional
Electrical Characteristics
Insulation Resistance >200mΩ
Rated Voltage 690 VDC/AC
Rated Current 80A-400A (depends on fuse)
Fuse Brand  B: Bussmann; S: Sinofuse; C: Cfriend
Shunt 200A
HVIL Optional
Mechanical Characteristics
Mating Cycle ≥500 times
Vibration LV215
IP Grade (mated) IP 6K9K/IPX8/IPXXD
IP Grade (unmated) IPXXB (Receptacle Only)
Touch Proof DIN EN60529 (Receptacle Only)
Environmental Characteristics
Operational Temp. -40℃ ~125℃
Other LV215
Application
Battery Pack, Motor, PDU, Charging Systems





Product Pictures:

UV Resistant Waterproof Battery Connectors UL94V-0 High Current Receptacle 0



Drawings:

UV Resistant Waterproof Battery Connectors UL94V-0 High Current Receptacle 1

Company Profile



NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.

NeoPower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, NeoPower delivers top quality products and excellent services to customers around the world.

UV Resistant Waterproof Battery Connectors UL94V-0 High Current Receptacle 2



Certifications & Approvals



The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.

UV Resistant Waterproof Battery Connectors UL94V-0 High Current Receptacle 3UV Resistant Waterproof Battery Connectors UL94V-0 High Current Receptacle 4UV Resistant Waterproof Battery Connectors UL94V-0 High Current Receptacle 5UV Resistant Waterproof Battery Connectors UL94V-0 High Current Receptacle 6
