12 Core Signal Transmission Low Voltage Connector Male EV Battery Connector

12 Core Signal Transmission Low Voltage Connector Male EV Battery Connector
12 Core Signal Transmission Low Voltage Connector Male EV Battery Connector

Large Image :  12 Core Signal Transmission Low Voltage Connector Male EV Battery Connector

Product Details:
Place of Origin: China
Brand Name: Neopower
Certification: USCAR-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable according to Quantities
Packaging Details: Standard Export Carton Box
Delivery Time: 5~10 days
Payment Terms: Western Union, MoneyGram
Supply Ability: 50000 per day

12 Core Signal Transmission Low Voltage Connector Male EV Battery Connector

Description
Rated Current: 7.5A~13A Rated Voltage: 250V DC
Insulation Resistance: 1000MΩ (RH 40%~60%) Dielectric Withstanding Voltage: 1500V AC
Wire Range: Optional IP Rating: IP68
Operation Temperature: -55 ℃ ~+125 ℃ Salt Spray Resistance: 144H (mating State)
HVIL: NO Shell: Plastic
High Light:

12 Core Low Voltage Connector

,

Signal Transmission Low Voltage Connector

,

Male EV Battery Connector

12 Core Signal transmission Low voltage Connector Male

Features:

  • Cable range: signal:optional

  • Poka-yoke

  • HVIL

  • Touch-proof

Application:

  • Motor controller
  • Lithium battery, lead-acid battery
  • Driving system
  • charging system

Specifications:

  • Rated current: 7.5A~13A
  • Rated voltage:DC 250V
  • Insulation resistance: 1000MΩ (RH 40%~60%)
  • Dielectric withstanding voltage:1500V AC
  • Temperature Range: -55~+125 ℃
  • IP Rating: IP68

Parameters:

Rated Current: 7.5A~13A
Rated Voltage:

DC 250V

Insulation Resistance: 1000MΩ (RH 40%~60%)
Dielectric Withstanding Voltage: 1500V AC
Temperature Range: -55~+125 ℃
IP Rating: IP68
Application: Motor controller, battery, driving system, charging system

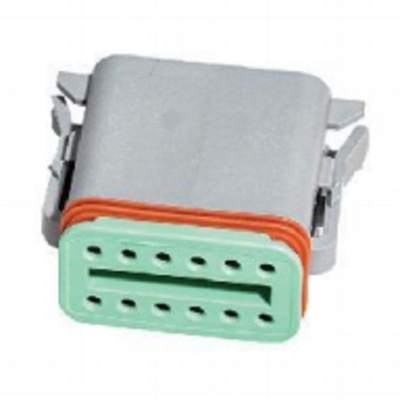

Product Pictures:

12 Core Signal Transmission Low Voltage Connector Male EV Battery Connector 0





Drawings:



12 Core Signal Transmission Low Voltage Connector Male EV Battery Connector 1
