Product Details:
|
| Rated Current: | 250A | Rated Voltage: | 1000V DC |
|---|---|---|---|
| Insulation Resistance: | 500MΩ MIN(at 25℃) | Test Voltage: | Power：3000V DC |
| Wire Range: | Power：50m㎡-70m㎡ | IP Rating: | IP54 |
| Operation Temperature: | -40 ℃ ~+125 ℃ | Salt Spray Resistance: | 48H |
| HVIL: | Yes | Shell: | Plastic |

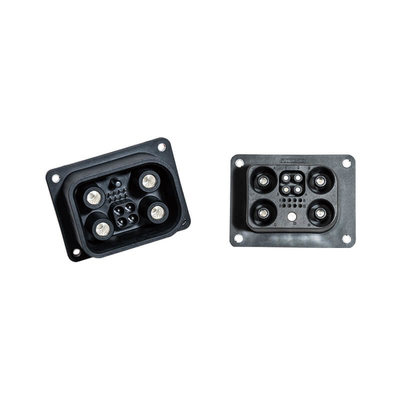

| High Light: | Electrical Motorcycle Quick Lock Connector,4 Pin motorcycle electrical connectors,250A motorcycle electrical connectors |
||
Cable range: 50mm2~70mm2
Poka-yoke
HVIL
Touch-proof
360°shielding
| Rated Current: | 250A |
| Rated Voltage: |
1000V DC |
| Insulation Resistance: | 500MΩ MIN(@25℃) |
| Testing Voltage: | Power 3000V AC |
| Temperature Range: | -40~+125 ℃ |
| IP Rating: | IP54 |
| Application: | Battery, E-scooter |
NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.
Neopower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, Neopower delivers top quality products and excellent services to customers around the world.
The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.
