Product Details:
|
| Rated Current: | 60A | Rated Voltage: | 1000V DC |
|---|---|---|---|
| Insulation Resistance: | 5000MΩ MIN（ DRY) 200MΩ MIN（RH 95%) | Dielectric Withstanding Voltage: | 3000V AC |
| Wire Range: | POWER:8AWG SIGNAL:20AWG | IP Rating: | IP67(Socket Waterproof) |
| Operation Temperature: | -40 ℃ ~+125 ℃ | Salt Spray Resistance: | 144H (mating State) |
| HVIL: | Yes | Shell: | Plastic |

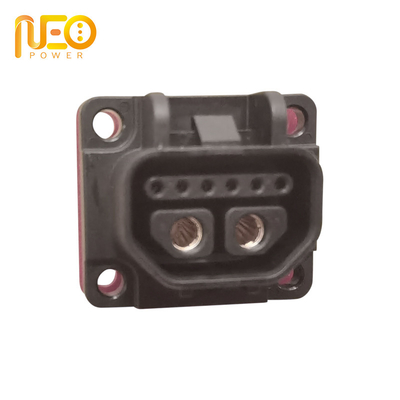

| High Light: | Male E Scooter Battery Connector,4 Hole E Scooter Battery Connector |
||
Secondary lock function
Cable range: power:8AWG signal: Power:8AWG Signal: 20AWG
Poka-yoke
HVIL
Touch-proof
360°shielding
| Rated Current: | 60A |
| Rated Voltage: |
1000V DC |
| Insulation Resistance: | 5000MΩ MIN(DRY)200MΩ MIN(RH 95%) |
| Dielectric Withstanding Voltage: | 3000V AC |
| Temperature Range: | -40~+125 ℃ |
| IP Rating: | IP67(Socket waterproof) |
| Application: | Motor controller, battery, driving system, charging system |
NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.
Neopower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, Neopower delivers top quality products and excellent services to customers around the world.
The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.
