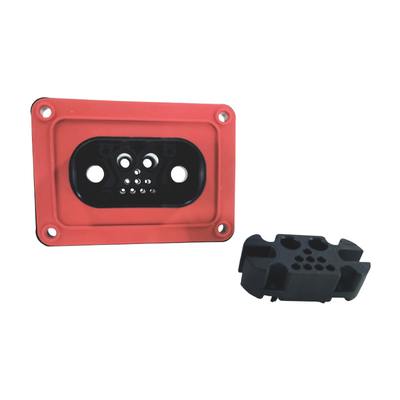

Heavy Current Quick Connection Connector E-Bike 2+2+8 Plug Plastic Shell

Heavy Current Quick Connection Connector E-Bike 2+2+8 Plug Plastic Shell
Heavy Current Quick Connection Connector E-Bike 2+2+8 Plug Plastic Shell

Large Image :  Heavy Current Quick Connection Connector E-Bike 2+2+8 Plug Plastic Shell

Product Details:
Place of Origin: China
Brand Name: Neopower
Certification: USCAR/ UL/ TUV
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable according to Quantities
Packaging Details: Standard Export Carton Box
Delivery Time: 3~7 days
Payment Terms: Western Union, MoneyGram
Supply Ability: 50000 per day

Heavy Current Quick Connection Connector E-Bike 2+2+8 Plug Plastic Shell

Description
Rated Current: 100A/120A Rated Voltage: 1000V DC
Insulation Resistance: 5000MΩ MIN( DRY) 200MΩ MIN(RH 95%) Dielectric Withstanding Voltage: 3000V AC
Wire Range: Power:16mm2~25mm2 IP Rating: IP67/IP54
Operation Temperature: -40 ℃ ~+125 ℃ Salt Spray Resistance: 48H
HVIL: Yes Shell: Plastic
High Light:

Heavy Current Quick Connection Connector

,

E-Bike Quick Connection Connector

Heavy current factory supply quick connection connector E-bike 2+2+8 Plug

Features:

  • Secondary lock function

  • Cable range: 16~25mm2

  • Poka-yoke

  • HVIL

  • Touch-proof

  • 360°shielding

Application:

  • Motor controller
  • Lithium battery, lead-acid battery
  • Driving system
  • charging system

Specifications:

  • Rated current: 100A/120A
  • Rated voltage: 1000V DC
  • Insulation resistance: 5000MΩ MIN(DRY)200MΩ MIN(RH 95%)
  • Dielectric withstanding voltage:3000V AC
  • Temperature Range: -40~+125 ℃
  • IP Rating: IP67/IP54

Parameters:

Rated Current: 100A /120A
Rated Voltage:

1000V DC

Insulation Resistance: 5000MΩ MIN(DRY)200MΩ MIN(RH 95%)
Dielectric Withstanding Voltage: 3000V AC
Temperature Range: -40~+125 ℃
IP Rating: IP67/IP54
Application: Battery, driving system, charging system



Product Pictures:





Heavy Current Quick Connection Connector E-Bike 2+2+8 Plug Plastic Shell 0





Drawings:



Heavy Current Quick Connection Connector E-Bike 2+2+8 Plug Plastic Shell 1





Company Profile

NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.

Neopower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, Neopower delivers top quality products and excellent services to customers around the world.

Heavy Current Quick Connection Connector E-Bike 2+2+8 Plug Plastic Shell 2



Certifications & Approvals



The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.

Heavy Current Quick Connection Connector E-Bike 2+2+8 Plug Plastic Shell 3Heavy Current Quick Connection Connector E-Bike 2+2+8 Plug Plastic Shell 4Heavy Current Quick Connection Connector E-Bike 2+2+8 Plug Plastic Shell 5Heavy Current Quick Connection Connector E-Bike 2+2+8 Plug Plastic Shell 6
