FLV2+8 High-Temp Hybrid Connector 80A 600VAC Black ABS Housing for Industrial Vehicles

Large Image : FLV2+8 High-Temp Hybrid Connector 80A 600VAC Black ABS Housing for Industrial Vehicles

Product Details:

Place of Origin:	China
Brand Name:	Neopower
Certification:	USCAR-2/ USCAR-37/ RoHS/ MIL-C-26482

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	Negotiable according to Quantities
Packaging Details:	Standard Export Carton Box
Delivery Time:	3~7 days
Payment Terms:	Western Union, MoneyGram
Supply Ability:	50000 per day

Contact Now

FLV2+8 High-Temp Hybrid Connector 80A 600VAC Black ABS Housing for Industrial Vehicles

Description

Rated Current:	80A / 100A	Rated Voltage:	1000V DC, 600V AC
Insulation Resistance:	5000MΩ MIN (Dry) / 200MΩ MIN (RH 95%)	Test Voltage:	4800V DC / 2200V AC
Wire Range:	10mm²-16mm² (Power)	IP Rating:	IP67
Operation Temperature:	-40℃ ~ +125℃	Salt Spray Resistance:	144H ( Mated)
Mating Cycles:	500+	Reference Standard:	USCAR-2, USCAR-37
Shell Material:	Plastic (ABS Housing)	Terminal Plating:	Gold / Nickel
Application:	Electric Vehicles (EVs)/Energy Storage Systems/Industrial Machinery

FLV2+8 High-Temp Hybrid Connector 80A 600VAC Black ABS Housing for Industrial Vehicles

Features

High-Current Design: Supports 80A/100A continuous current with dual-rated voltage (1000V DC/600V AC) for robust power transmission.
Touch-Proof & Safety-Certified: Reinforced insulation and shrouded contacts ensure user safety during installation and operation.
IP67 Waterproof & Dustproof: Sealed with waterproof gaskets and rings, ideal for harsh environments (e.g., automotive, industrial).
Enhanced Durability:
- 500+ mating cycles with stamped metal terminals (gold/nickel-plated for corrosion resistance).
- Salt spray resistance tested for 144 hours (mated condition).
Poka-Yoke Keying: L/R-Type keying options prevent mismating in tight spaces.
Wide Compatibility:
- Power cables: 10-16mm² (supports high-current EV applications).
- Signal wires: 0.75-1.5mm² (16-18 AWG) for integrated control systems.

Applications

Electric Vehicles (EVs): Battery packs, motor controllers, charging ports, and driving systems.
Energy Storage Systems: Lithium/lead-acid battery interconnects, family laminated storage boxes.
Industrial Machinery: Low-speed EV battery swaps, rugged industrial wiring.

Specifications

Parameter	Value
Rated Current	80A / 100A (continuous)
Rated Voltage	1000V DC / 600V AC
Insulation Resistance	5000MΩ (dry) / 200MΩ (95% RH)
Test Voltage	4800V DC (power) / 2200V AC (signal)
Temperature Range	-40°C to +125°C
IP Rating	IP67 (with waterproof gasket)
Certifications	USCAR-2, USCAR-37, RoHS compliant

Key Advantages for B2B Buyers

Reliability in Extreme Conditions:
- Operates flawlessly in temperatures from -40°C to +125°C and withstands humidity, vibration, and salt spray.
- ABS plastic housing ensures lightweight yet durable construction.
Precision Engineering:
- Gold/nickel-plated terminals reduce resistance and enhance conductivity.
- 0.3~0.4N·m torque-controlled assembly (using "instant brake" tools) guarantees secure connections.
Versatile Integration:
- Compatible with F3-C20136/F3-C20138 series terminals for flexible wiring configurations.
- Supports hybrid power-signal transmission, streamlining EV and energy storage system designs.
Compliance & Safety:
- Meets automotive industry standards (USCAR-2/37) and global environmental regulations (RoHS).

Why Choose FLV2+8?

Optimized for EVs: Tailored for high-voltage battery systems and fast-charging infrastructure.
Future-Proof Design: Scalable for next-gen energy storage and industrial automation demands.
Global Support: Backed by rigorous QA testing and detailed installation guidelines for seamless deployment.

Contact us for custom configurations (e.g., specific terminal plating, wire ranges) to meet your project needs!

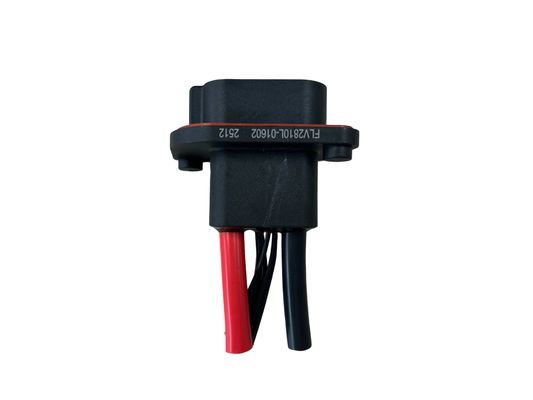

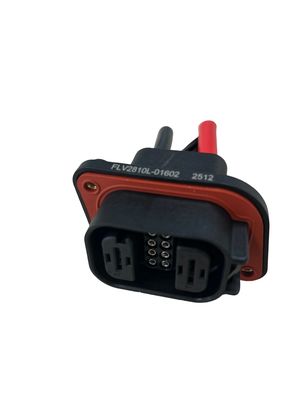

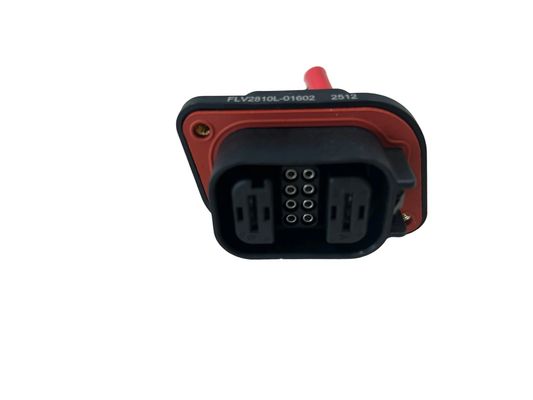

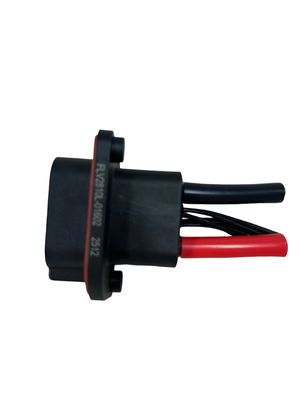

Product Pictures:
