Product Description

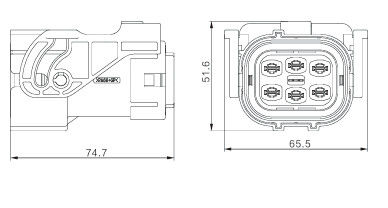

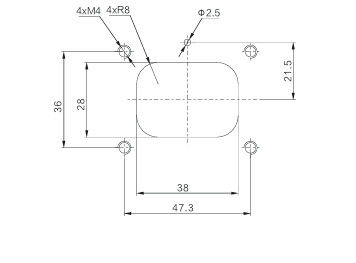

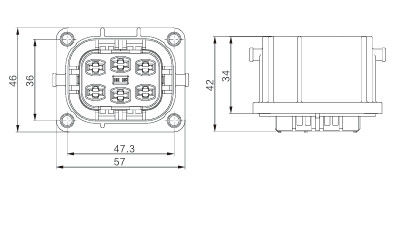

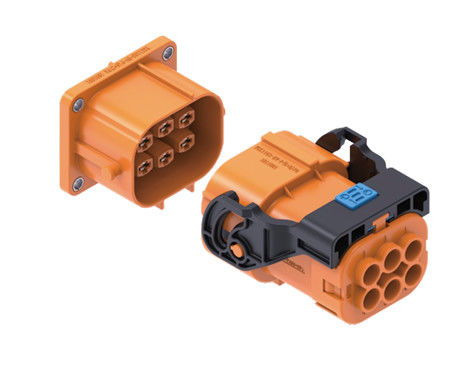

The Neopower 6-Pin High Voltage 1000V 35A Automotive Power and Signal Connector is meticulously engineered for critical applications in modern electric vehicle systems, including On-Board Chargers (OBC) and Battery Disconnect Units (BDU). This advanced 6 pin connector is designed to deliver both substantial power and precise signal transmission, setting a new standard for reliability and safety in demanding environments. If you've been searching for different 6 pin connector types or a robust 6 pin connector power supply solution, this Neopower product offers a comprehensive set of features.
Built with safety as a priority, this connector integrates a High Voltage Interlock (HVIL) system, a touch-proof design, and Poka-yoke keying. These features work in concert to prevent accidental exposure to high voltages and ensure correct mating, which is essential whether you are using the 6 pin connector male or 6 pin connector female versions. The secondary lock function further guarantees a secure and vibration-resistant connection, vital for automotive applications. Unlike a standard molex 6pin connector or some simpler 6 pin connector gpu solutions, this connector is built for high-voltage, high-current scenarios.
The Neopower connector boasts exceptional durability with its rugged plastic shell and an impressive IP67 & IP6K9K rating, offering complete protection against dust and water, including high-pressure, high-temperature spray downs. Its 360° shielding minimizes electromagnetic interference, crucial for maintaining signal clarity and power efficiency in complex electrical systems. This versatile connector supports a wide range of cable sizes (2.5mm² to 6mm² for power; 0.35mm² for signal) and operates flawlessly across a broad temperature spectrum (-40°C to +125°C). For those requiring a dependable 6 pin connector automotive solution, or even for robust 6 pin connector trailer applications where high power and signal integrity are paramount, the Neopower 6-pin connector offers unparalleled performance and peace of mind.
| Attribute | Value |
| Brand | Neopower |
| Product Type | High Voltage Power and Signal Connector |
| Number of Pins | 6 |
| Shell Material | Plastic |
| Primary Applications | On-Board Chargers (OBC), Battery Disconnect Units (BDU) |
| Rated Voltage (Power) | 1000V (AC/DC) |
| Rated Current (Power) | 25A (2.5mm² cable) |
| 30A (4mm² cable) | |
| 35A (6mm² cable) | |
| Cable Range (Power) | 2.5mm² to 6mm² |
| Rated Voltage (Signal) | 24V (AC/DC) |
| Rated Current (Signal) | 2A (0.35mm² cable) |
| Cable Range (Signal) | 0.35mm² |
| Dielectric Withstanding Voltage (Power) | 3000V AC 50Hz (Normal) |
| Dielectric Withstanding Voltage (Signal) | 1000V AC 50Hz (Normal) |
| Operating Temperature Range | -40°C to +125°C |
| IP Rating | IP67 & IP6K9K, IPXXB (Touch-proof) |
| Key Safety Features | Secondary Lock Function, Poka-yoke (Mis-mating Prevention), High Voltage Interlock (HVIL), Touch-proof |
| Shielding | 360° Shielding |
Frequently Asked Questions (FAQs)
Q: What are the main applications for the Neopower 6-pin High Voltage Connector?
A: This robust Neopower 6 pin connector is specifically designed for demanding automotive applications within electric vehicle (EV) systems. It's ideal for connecting On-Board Chargers (OBC) and Battery Disconnect Units (BDU), where reliable high voltage power and signal transmission up to 1000V and 35A is critical for performance.
Q: What safety features are integrated into this 6 pin connector?
A: Safety is a core design principle. This 6 pin connector incorporates multiple safety mechanisms: a High Voltage Interlock (HVIL) system to ensure power is cut before disconnection, a Poka-yoke design to prevent incorrect mating, a secondary lock for a secure and vibration-resistant connection, and a touch-proof (IPXXB) construction. These features make it a safe and reliable choice for high voltage environments.
Q: Can this Neopower connector withstand harsh environmental conditions?
A: Absolutely. It features a durable plastic shell and boasts an IP67 and IP6K9K rating, meaning it's fully protected against dust and water ingress, including high-pressure water jets. Coupled with its wide operating temperature range of -40°C to +125°C, this 6 pin connector automotive solution is built for resilience and long-term durability.
Q: What are the voltage and current ratings for this connector's power and signal pins?
A: The power pins on this 6 pin connector power supply solution are rated for up to 1000V (AC/DC) and can handle up to 35A (when using 6mm² cables). The dedicated signal pins are rated for 24V (AC/DC) and 2A, ensuring clear and reliable data transmission alongside the high power delivery needed in OBC and BDU systems.
Q: Does this connector offer protection against electromagnetic interference (EMI)?
A: Yes, it does. The connector features comprehensive 360° shielding. This is crucial for maintaining signal integrity and preventing electromagnetic interference in the complex electrical environments typically found in electric vehicles and other high voltage applications, distinguishing it among various 6 pin connector types.
Q: What cable sizes are compatible with the Neopower 6-pin connector?
A: This versatile Neopower 6 pin connector is designed to accommodate power cables ranging from 2.5mm² to 6mm², allowing for different current carrying capacities (specifically, 25A for 2.5mm², 30A for 4mm², and up to 35A for 6mm²). For signal transmission, it is optimized for 0.35mm² cables.
Q: How does the Poka-yoke (mis-mating prevention) feature benefit the user?
A: The Poka-yoke design in this Neopower connector utilizes unique keying for its 6 pin connector male and 6 pin connector female components. This ensures that the connector halves can only be mated in the correct orientation, preventing pin damage or system errors due to incorrect assembly. This is a vital feature for both manufacturing efficiency and field service in automotive applications.
Q: Is there a locking mechanism to prevent accidental disconnection of this 6 pin connector?
A: Yes, the connector is equipped with a robust secondary lock function. This provides an additional layer of security, ensuring the connection remains stable and reliable even when subjected to vibrations or movements common in automotive environments, thus guaranteeing the integrity of your OBC or BDU connections.
