|Rated Current:||75A/100A/ 125A||Rated Voltage:||TUV DC 1000V|
|Insulation Resistance:||5000 MΩ Min （Dry） 200 MΩ Min (RH 95%)||Test Voltage:||3000V AC|
|Minimum Mating Cycles:||500 Times||Wire Range:||10mm2~25mm2|
|Protection Grade:||IP67B||Operation Temperature:||-40℃ ~+125 ℃|
|Salt Spray Resistance:||144H (mating State)||Standard:||USCAR-2, USCAR37|
TUV plastic electrical connectors,
TUV ip67 waterproof connector,
75A ip67 waterproof connector

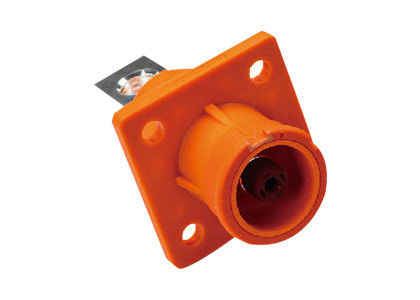

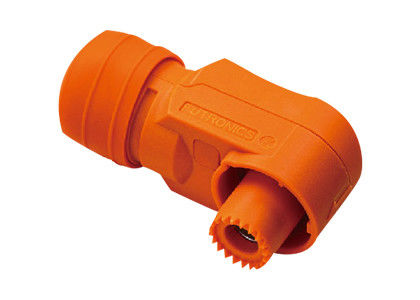

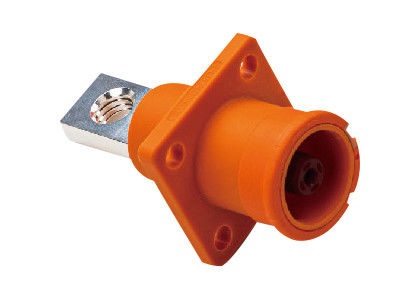

This product is energy storage plastic connector, which is applicable for high-voltage, high current connection between components such as energy stoarge cabinet, energy storage station, mobile energy storage vehicles, photovoltaic power station, etc.
|Rated Voltage||TUV DC 1000V|
5000 mΩ Min (Dry)
200 mΩ Min (RH 95%)
|Test Voltage||3000V AC|
|Minimum Mating Cycles||500 times|
|Operation Temperature||-40 ℃ ~+125 ℃|
|Salt Spray Resistance||144H (Mating State)|
|TUV 2pfG 2740-04.20|
NeoPoewer is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.
NeoPower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, NeoPower delivers top quality products and excellent services to customers around the world.
Certifications & Approvals
The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.
