Product Details:
|
Rated Current: | 20A/ 30A/ 45A/ 70A | Rated Voltage: | 1000V DC |
---|---|---|---|
Insulation Resistance: | 5000 MΩ Min (Dry) 200 MΩ Min (RH 95%) | Test Voltage: | 3000V AC |
Minimum Mating Cycles: | 500 Times | Wire Range: | 16 Mm2~35mm2 |
Protection Grade: | IP67B | Operation Temperature: | -40 ℃ ~+125 ℃ |
Salt Spray Resistance: | 144H (mating State) | EMI Shielded: | No |
High Light: | 1000V DC marine battery connectors,20A marine battery connectors,20A battery pack connectors |
Part No.: FHV20*236**01
Description:
This product is vehicle mounted high-voltage plastic shell connector, suitable for lithium battery packs for electrical motorcycle, scooter, marine, boat, RV application
Application:
Parameters:
Electrical Performance | |
Rated Current | 20A/ 30A/ 45A/ 70A |
Rated Voltage | 1000V DC |
Insulation Resistance |
5000 mΩ Min (Dry) 200 mΩ Min (RH 95%) |
Test Voltage | 3000V AC |
Mechanical Performance | |
Minimum Mating Cycles | 500 times |
Wire Range | 2.5 mm2~10mm2 |
Environment Performance | |
Protection Grade | IP67B |
Operation Temperature | -40 ℃ ~+125 ℃ |
Salt Spray Resistance | 144H (Mating State) |
Reference Standard | |
USCAR-2 | |
USCAR-37 | |
RoHs |

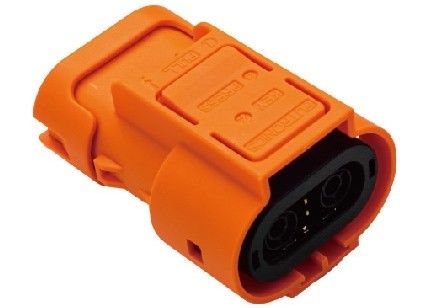

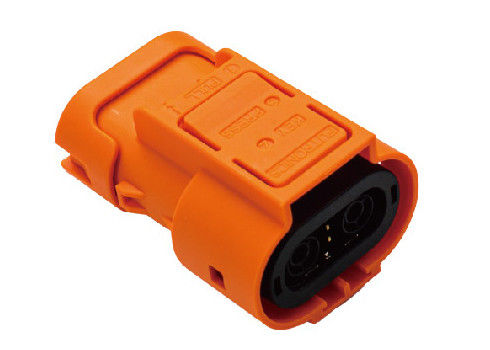

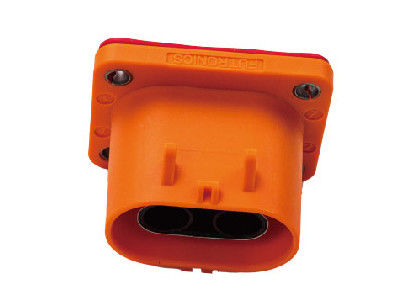

Product Pictures:
Drawings:

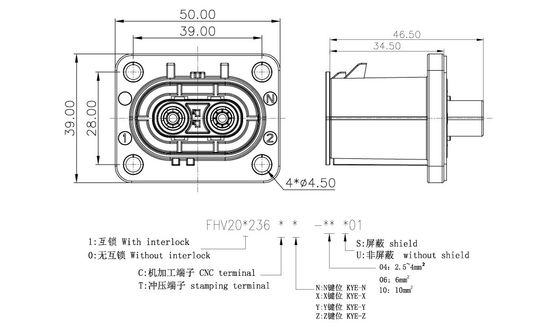

Socket

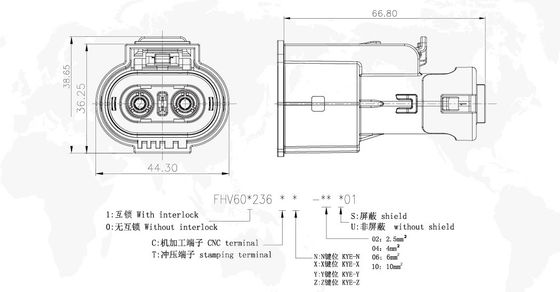

Plug
