Product Details:
|
| Rated Current: | 200A Max | Rated Voltage: | 750V DC |
|---|---|---|---|
| Insulation Resistance: | 5000 MΩ Min （Dry） 200 MΩ Min (RH 95%) | Test Voltage: | 3000V AC |
| Minimum Mating Cycles: | 100 Times | Wire Range: | 35mm2~70mm2 |
| Protection Grade: | IP67 /IP55 | Operation Temperature: | -40℃ ~+125 ℃ |
| Salt Spray Resistance: | 48H (mating State) | Standard: | USCAR-2, USCAR37,RoHS |
| High Light: | 200A electric scooter battery connector,TUV electric scooter battery connector,TUV high amp battery connectors |
||
It is mainly used for the high voltage high current transmission on electric vehile by line to line method, such as battery pack and PDU connection.
| Electrical Performance | |
| Rated Current | 200A max |
| Rated Voltage | 1000V DC |
| Insulation Resistance |
5000 mΩ Min (Dry) 200 mΩ Min (RH 95%) |
| Test Voltage | 3000V AC |
| Mechanical Performance | |
| Minimum Mating Cycles | 100 times |
| Wire Range | 35mm2~70mm2 |
| Environment Performance | |
| Protection Grade | IP67 /IP55 |
| Operation Temperature | -40 ℃ ~+85 ℃ |
| Salt Spray Resistance | 48H (Mating State) |
| Reference Standard | |
| USCAR-2 | |
| USCAR-37 | |
| RoHS |

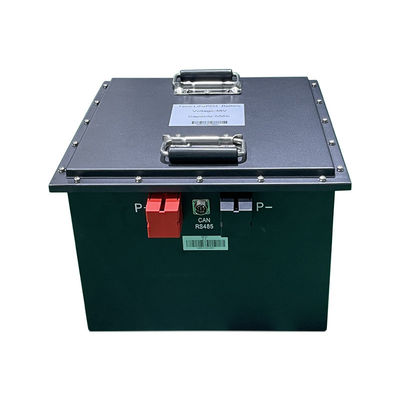

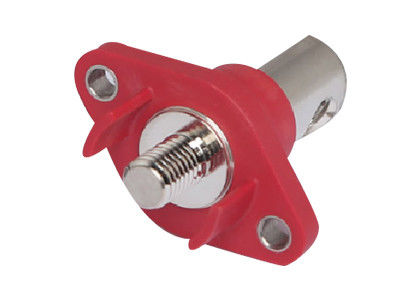

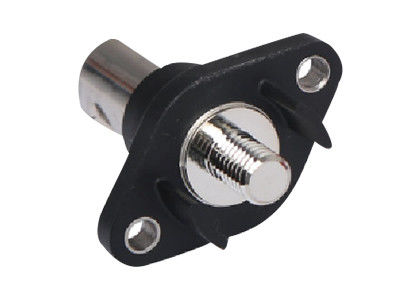

Product Pictures:
Drawings:
Company Profile
NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.
NeoPower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, NeoPower delivers top quality products and excellent services to customers around the world.
Certifications & Approvals
The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.
