Product Details:
|
Rated Current: | 300A Max | Rated Voltage: | 1000V DC |
---|---|---|---|
Insulation Resistance: | 5000 MΩ Min (Dry) 200 MΩ Min (RH 95%) | Test Voltage: | 3000V AC |
Minimum Mating Cycles: | 500 Times | Wire Range: | 50mm2~95mm2 |
Protection Grade: | IP67 (mated) | Operation Temperature: | -40℃ ~+125 ℃ |
Salt Spray Resistance: | 48H (mating State) | Standard: | USCAR-2, USCAR37,RoHS, LV215 |
High Light: | insulation resistant solar battery connector,insulation resistant ebike battery connector,EMI shielded ebike battery connector |
It is mainly used for the high voltage high current transmission on electric vehile by line to line method, such as battery pack and PDU connection.
Electrical Performance | |
Rated Current | 300A max |
Rated Voltage | 1000V DC |
Insulation Resistance |
5000 mΩ Min (Dry) 200 mΩ Min (RH 95%) |
Test Voltage | 3000V AC |
Mechanical Performance | |
Minimum Mating Cycles | 500 times |
Wire Range | 50mm2~95mm2 |
Environment Performance | |
Protection Grade | IP67 (mated) |
Operation Temperature | -40 ℃ ~+85 ℃ |
Salt Spray Resistance | 48H (Mating State) |
Reference Standard | |
USCAR-2 |
USCAR-37 | |
RoHS | |
LV215 |

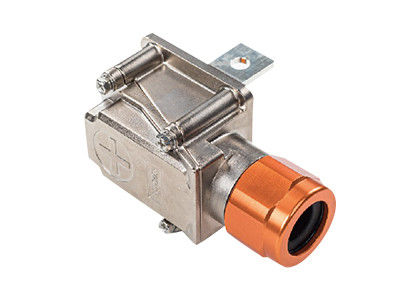

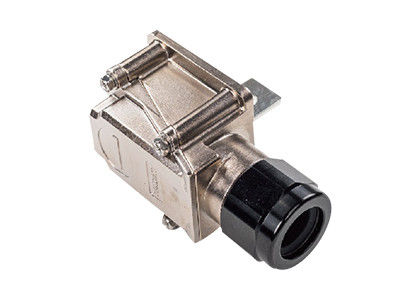

Product Pictures:
Drawings:
