Product Details:
|
| Rated Current: | 350A Max | Rated Voltage: | 1000V DC |
|---|---|---|---|
| Insulation Resistance: | 5000 MΩ Min （Dry） 200 MΩ Min (RH 95%) | Test Voltage: | 3000V AC |
| Minimum Mating Cycles: | 500 Times | Wire Range: | 50mm2~95mm2 |
| Protection Grade: | IP67 (mated) | Operation Temperature: | -40℃ ~+125 ℃ |
| Salt Spray Resistance: | 48H (mating State) | Standard: | USCAR-2, USCAR37,RoHS, MIL-C-26482 |
| High Light: | metal shell single pin electrical connector,350A high current battery connectors,metal shell high current battery connectors |
||
This metal shell connectors are widely used in electrical vehicle filed for high voltage/ high current transmission between devices such as vehicle chargers, battery packs, high-voltage distribution boxes, motor controller, motor, air conditioner, PTC, lithium battery, etc.
| Electrical Performance | |
| Rated Current | 350A max |
| Rated Voltage | 1000V DC |
| Insulation Resistance |
5000 mΩ Min (Dry) 200 mΩ Min (RH 95%) |
| Test Voltage | 3000V AC |
| Mechanical Performance | |
| Minimum Mating Cycles | 500 times |
| Wire Range | 50mm2~95mm2 |
| Environment Performance | |
| Protection Grade | IP67 (mated) |
| Operation Temperature | -40 ℃ ~+85 ℃ |
| Salt Spray Resistance | 48H (Mating State) |
| Reference Standard | |
| USCAR-2 | |
| USCAR-37 | |
| RoHS | |
| MIL-C-26482 |
Product Pictures:
Drawings:

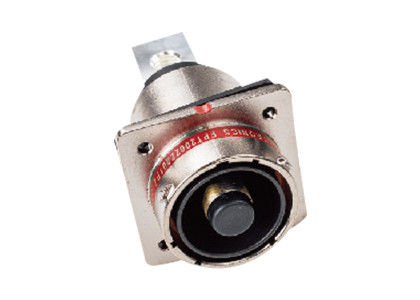

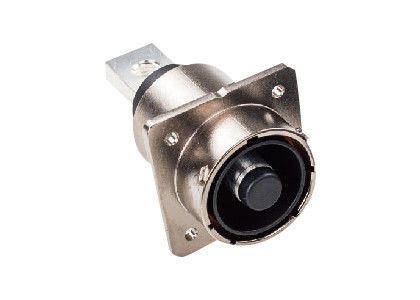

Socket (inside mounted)

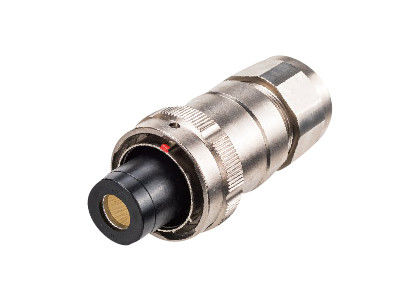

Plug (Straight)

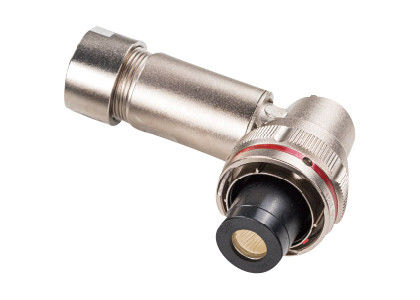

Plug (Right Angle)
Company Profile
NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.
NeoPower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, NeoPower delivers top quality products and excellent services to customers around the world.
Certifications & Approvals
The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.
