FSP6.0 Straight High Voltage Connector 125A 1000V DC IP67B Single Core for Energy Storage Systems
Engineered for demanding high-power applications, the FSP6.0 Single Core Straight Connector provides a secure, reliable, and environmentally sealed connection solution specifically tailored for Energy Storage Systems (ESS) and Photovoltaic (PV) installations. Its robust design ensures efficient power transmission and long-term performance in challenging conditions.
Features
-
High Power Capability: Designed to handle significant power loads with a rated current of 100A/125A and a high rated voltage of 1000V DC, making it ideal for modern ESS and solar applications.
-
Superior Environmental Protection (IP67B): Offers excellent protection against dust ingress and temporary water immersion when mated. This ensures reliable operation even in outdoor or demanding industrial environments.
-
Enhanced Durability & Longevity:
-
Built to withstand 500 mating cycles, guaranteeing consistent performance over a long service life.
-
Excellent corrosion resistance, verified through 144 hours of salt spray testing in a mated condition, suitable for various climates.
-
-
Wide Operating Temperature Range: Operates flawlessly across a broad temperature spectrum from -40°C to +125°C, ensuring reliability in extreme weather conditions.
-
Straight Connector Design: Features a standard straight configuration for straightforward cable routing and direct connections in suitable layouts.
-
Optimized Wire Compatibility: Designed for power cables ranging from 16mm² to 25mm², providing flexibility for common high-current wiring sizes.
-
High Insulation Integrity: Maintains excellent insulation resistance (>5000MΩ dry / >200MΩ @ 95% RH) and withstands a 3000V AC dielectric test voltage, ensuring electrical safety.
-
Applications
The FSP6.0 Straight Connector is the perfect choice for high-voltage DC connections in:
-
Energy Storage Systems (ESS): Ideal for interconnections within battery cabinets, containerized storage solutions, and mobile energy storage units.
-
Photovoltaic (PV) Systems: Suitable for connections in solar power plants, including inverter links, combiner boxes, and main DC lines.
-
Industrial Power Systems: Applicable in various industrial settings requiring robust, high-current, high-voltage DC connectors with environmental sealing.
-
Specifications
| Model |
FSP 6.0 Signal Core Straight Connector (IP67B) |
| Rated Current |
100A / 125A |
| Rated Voltage |
1000V DC |
| Insulation Resistance |
>5000MΩ (Dry) / >200MΩ (RH 95%) |
| Test Voltage |
3000V AC |
| Mating Cycles |
500 |
| Wire Range |
16mm² - 25mm² |
| IP Rating |
IP67B (Mated) |
| Operating Temperature |
-40°C to +125°C |
| Salt Spray (Mated) |
144 Hours |
| Reference Standards |
TUV 2PFG 2740-04.20, USCAR-2, USCAR-37 |
Key Advantages for B2B Buyers
-
Reliability in Harsh Environments: The IP67B rating combined with the wide temperature range and proven salt spray resistance minimizes downtime and maintenance costs in demanding installations.
-
High Performance Power Transfer: Supports high current and voltage levels efficiently, crucial for maximizing the performance of ESS and PV systems.
-
Assured Quality & Compliance: Manufactured in adherence to recognized industry standards (TUV, USCAR), simplifying system integration and ensuring safety and quality.
-
Durability for Long-Term Use: The 500-cycle lifespan ensures the connector remains reliable throughout the typical operational life of energy storage and solar equipment.
-
Application-Specific Design: Tailored features address the specific needs of the rapidly growing energy storage and photovoltaic markets.
-
Why Choose the FSP6.0 Straight Connector?
The FSP6.0 Straight Connector delivers a powerful combination of high current capacity, exceptional environmental sealing, and long-term durability. It is specifically optimized for the critical connections within modern energy storage and PV systems, offering a reliable and standards-compliant solution. Its robust construction ensures performance continuity even under challenging operating conditions.

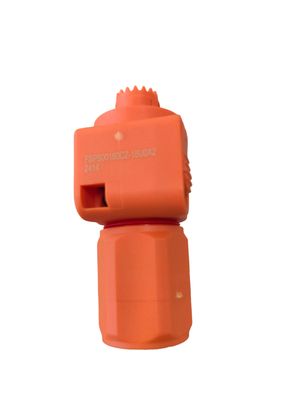

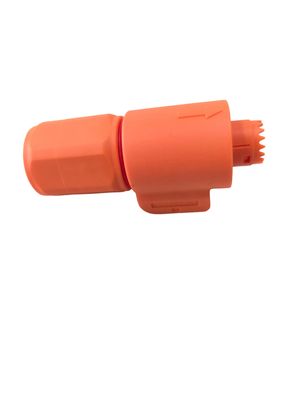

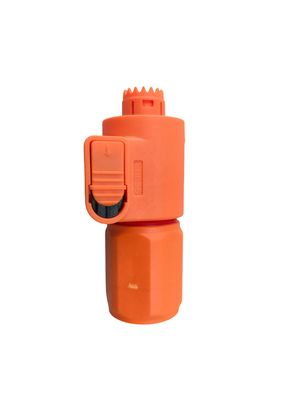

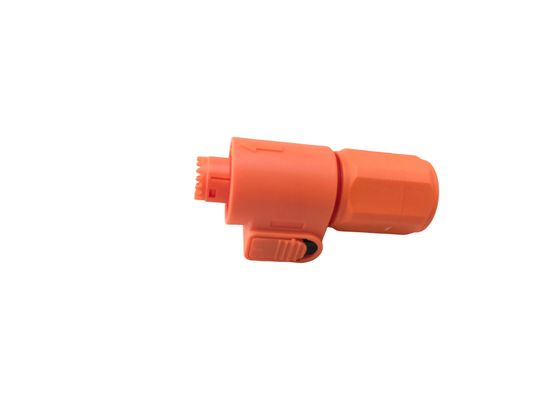

Product Pictures:
Company Profile
NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.
Neopower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, Neopower delivers top quality products and excellent services to customers around the world.
Certifications & Approvals
The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.
Contact:
Contact Person: Vivian Choi
Email: neopowertech@hotmail.com
Contact us today to discuss how the FSP6.0 Straight Connector can meet the specific requirements of your energy storage or photovoltaic project! We can provide further technical details and discuss potential customization options.
