Product Details:
|
| Features: | High Current Carrying Capacity, Secure Locking Mechanism | Dielectric Voltage: | 3500VAC/6000VDC |
|---|---|---|---|
| Connector Style: | Elbow / 90 Degree Right Angle | Contact Material: | Copper Alloy / Typical |
| Voltage Rating: | Up To 600V | Termination Style: | Solder |
| Termination Method: | Crimp / Typical | Rohs Compliant: | Yes ( Typically Required) |
| Current Rating: | Up To 100A | Product Series: | FSP8.0 |
| Mating Cycles: | 500 | Touch Proof: | DIN EN60529 |
| Secondary Application: | Energy Storage Systems - ESS (Potential） | Combination Power: | ≤400N |
| Operation Temperature: | -40 ℃ ~+125 ℃ |
Key Features:
Product Description:
The Neopower High Voltage Energy Storage Connector series, featuring a primary 120A MAX model (based on LD-CN-120 specifications) and options extending to 200A and 300A, is a state-of-the-art solution for demanding power applications. Engineered in Dongguan, China, these single-core connectors (available in Male/Female pairs) provide a secure, reliable, and high-performance interconnection for battery energy storage systems, renewable energy installations, and high-voltage electric vehicle systems, including use as a robust car battery connector in EV battery packs.

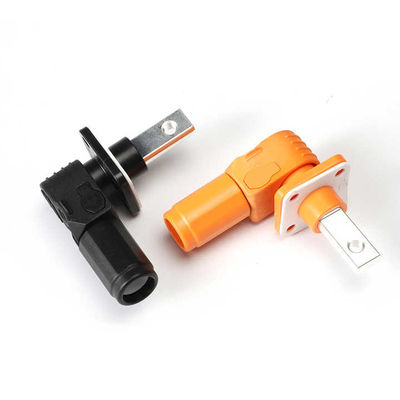

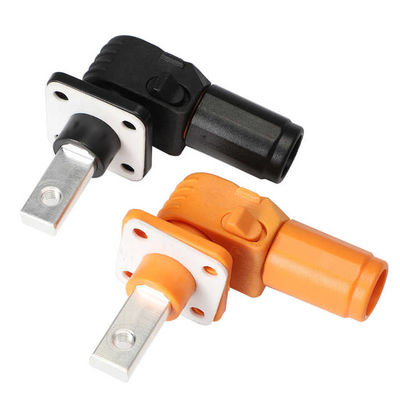

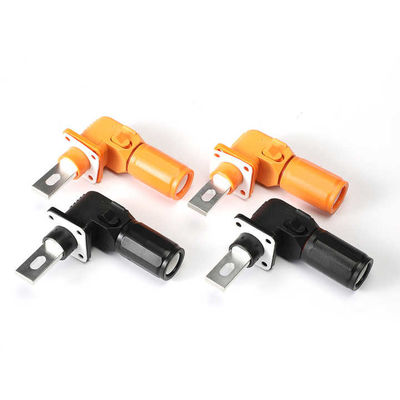

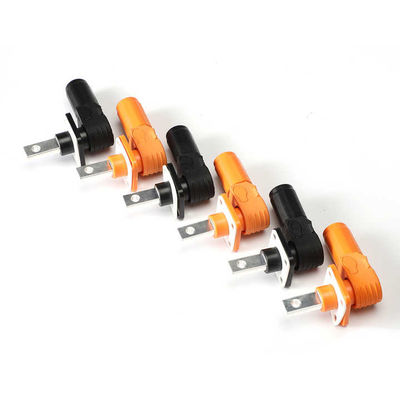

The Neopower 120A connector is rated for a high operational voltage of 1500V DC and a continuous current of 120A MAX. It is designed for optimal termination with 16mm² or 25mm² extension cables, utilizing high-conductivity, silver-plated contacts to minimize resistance and ensure efficient power transfer. The distinctive orange and black color scheme provides clear visual identification for high-voltage circuits, enhancing safety in complex power systems.
Built for longevity, the Neopower connector boasts an impressive use life of 15 years. It is engineered to perform reliably across an extensive operating temperature range from -40℃ to +125℃. The housing materials meet a stringent UL94 V-0 fire rating, ensuring excellent flame retardancy and contributing to the overall safety and durability of the connection in critical applications. This product is from a private mold, indicative of its specialized design.
Safety is paramount in high-voltage, high-current systems. This Neopower connector incorporates a secure locking mechanism to prevent unintentional disconnection due to vibration or stress. It features touch-proof contacts for operator safety when unmated and achieves an IP65 waterproof rating when properly mated, protecting against dust and water jets. Keying options are available to prevent misconnection of multiple circuits. The connector system includes comprehensive protection features like Short Circuit Protection, Over-charging protection (in the context of the system it's used in), Overcurrent, and Overvoltage tolerance within its design parameters.
The Neopower high current connectors are constructed from high-performance, flame-retardant engineered polymers, ensuring excellent mechanical strength, electrical insulation, and resistance to harsh environmental conditions. This robust design makes them ideal for use in energy storage cabinets, industrial power systems, and other applications where reliability is non-negotiable.
The Neopower High Voltage Connector series is perfectly suited for OEM manufacturers of battery packs and energy storage systems, as well as system integrators developing renewable energy projects or EV charging infrastructure for various power applications. Neopower offers customization and supports B2B clients with flexible solutions tailored to their specific power application needs.
Choose Neopower high current connectors for a secure, efficient, and durable solution for your high-voltage energy storage and power distribution needs. Neopower is dedicated to providing innovative and reliable connector technology, ensuring your systems operate with maximum safety and performance.
Okay, here is the attribute table for the Neopower High Voltage 120A Energy Storage Connector (part of the 120A/200A/300A series). The parameters are consistent with the detailed description previously generated for this product, presented in a simple and clear format, and reflect what was stated in that description.
| Attribute | Value |
| Brand | Neopower |
| Product Type | Single-Core High-Voltage Energy Storage Connector |
| Model Series Base (for 120A specifications) | Based on LD-CN-120 specifications |
| Current Rating (Continuous - 120A Model) | 120A MAX |
| Higher Current Options in Series | 200A, 300A versions available |
| Voltage Rating (DC) | 1500V DC |
| Compatible Cable Size (for 120A model) | 16mm² / 25mm² |
| Operating Temperature Range | -40℃ to +125℃ |
| Protection Grade (When Mated) | IP65 (Waterproof and Dust-tight) |
| Fire Rating (Housing Material) | UL94 V-0 (Flame-Retardant) |
| Use Life | 15 Years |
| Color Scheme | Orange / Black (for high-voltage identification) |
| Housing Material | High-Performance, Flame-Retardant Engineered Polymers |
| Contact Material | High-Conductivity Copper Alloy, Silver-Plated |
| Locking Mechanism Type | Secure Locking Mechanism |
| Keying Options | Available (to prevent mis-mating and ensure correct polarity) |
| Safety Features | Touch-Proof Design (when unmated), Secure Locking, Color-Coding |
| System Fault Tolerance (Design Parameters) | Designed to handle system conditions including short circuit, overcurrent, and overvoltage scenarios |
| Private Mold Design | Yes |
| Manufacturing Origin | Dongguan, China |
| Primary Applications | Energy storage systems, battery cabinets, inverters, power distribution units, high-voltage electric vehicle systems (including as a robust car battery connector in EV battery packs) |
| Standards Compliance (Designed to meet) | Relevant international safety and performance standards (such as UL, CE, TUV) |
| Customization / OEM / ODM | Supported by Neopower for specific application needs |
| Gender Availability | Male / Female Pairs |
