Product Description

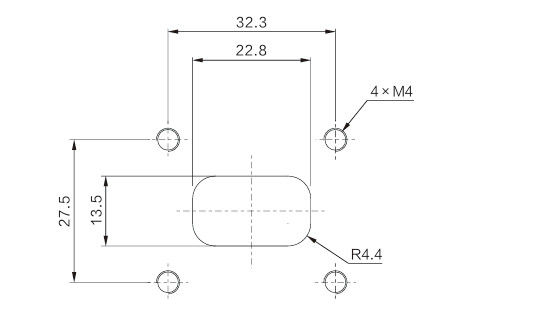

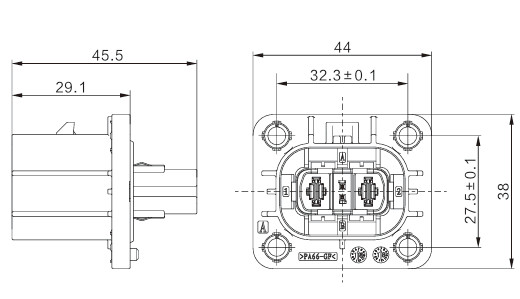

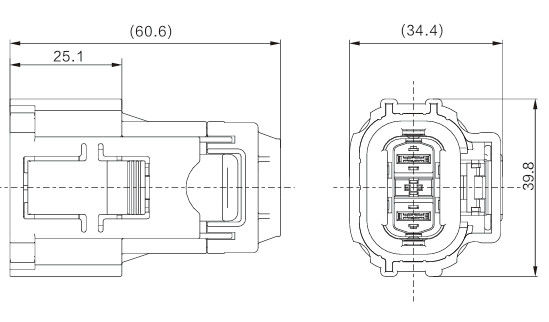

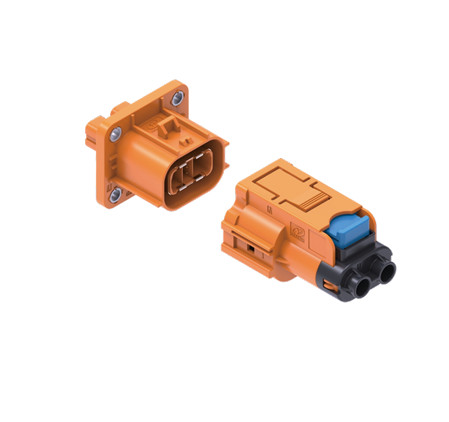

The Neopower High-Performance 2 Pin 1000V 40A Electrical Connector with HVIL, Poka-Yoke, and 360° Shielding is meticulously engineered to deliver exceptional performance and safety in demanding high-voltage environments. This advanced 2 pin connector is ideally suited for a wide range of applications, including Air Conditioning Compressors, PTC heaters, On-Board Chargers (OBC), DC-DC converters, Power Distribution Units (PDU), and Battery Disconnect Units (BDU).
Designed with user safety and system integrity as priorities, this connector integrates multiple protective features. The Secondary Lock Function ensures a secure and reliable connection, while the Poka-yoke design prevents mismating. Essential safety mechanisms such as High Voltage Interlock (HVIL) and touch-proof contacts are incorporated to safeguard against electrical hazards. This robust 2 pin electrical connector also boasts 360° shielding, providing excellent protection against EMI and ensuring optimal signal integrity for sensitive applications.
The Neopower 2 pin connector supports a versatile cable range from 2.5mm² to 6mm², allowing for power transmission capacities of 20A (2.5mm²), 32A (4mm²), and up to 40A (6mm²) at a rated voltage of 1000V AC/DC. Additionally, it includes provision for a 2A signal transmission at 24V AC/DC using a 0.35mm² cable. Built to endure extreme conditions, it operates flawlessly across a temperature spectrum of -40°C to +125°C and offers outstanding protection with IP67 & IP6K9K ratings, alongside IPXXB touch-proof certification. The dielectric withstanding voltage is 3000V AC for power and 1000V AC for signal circuits under normal conditions, making these 2 pin electrical connectors a reliable choice for critical systems. For a dependable and secure connection in your high-power applications, trust the Neopower High-Performance 2 Pin Connector.
| Attribute | Value |
| Brand | Neopower |
| Product Type | 2 Pin Electrical Connector |
| Primary Applications | Air Condition Compressor, PTC (Positive Temperature Coefficient heaters), OBC (On-Board Charger), DCDC (DC-DC Converter), PDU (Power Distribution Unit), BDU (Battery Disconnect Unit) |
| Secondary Lock Function | Yes |
| Cable Range (Power Circuit) | 2.5mm² – 6mm² |
| Cable Compatibility (Signal Circuit) | 0.35mm² |
| Poka-yoke (Mis-mating Prevention) | Yes |
| HVIL (High Voltage Interlock) | Yes |
| Touch-proof Design | Yes (Complies with IPXXB) |
| Shielding | 360° Comprehensive Shielding |
| Rated Current (Power Circuit) | 20A (with 2.5mm² cable) <br> 32A (with 4mm² cable) <br> 40A (with 6mm² cable) |
| Rated Current (Signal Circuit) | 2A |
| Rated Voltage (Power Circuit) | 1000V (AC/DC) |
| Rated Voltage (Signal Circuit) | 24V (AC/DC) |
| Dielectric Withstanding Voltage (Power Circuit) | 3000V AC, 50Hz (Normal Conditions) |
| Dielectric Withstanding Voltage (Signal Circuit) | 1000V AC, 50Hz (Normal Conditions) |
| Operating Temperature Range | -40°C to +125°C |
| IP Rating (Environmental Protection) | IP67 & IP6K9K (when mated, for dust and high-pressure/high-temperature water protection) <br> IPXXB (finger-safe, touch-proof for unmated connector parts) |
Frequently Asked Questions (FAQs)
Q1: What are the primary applications for the Neopower 2 pin connector?
A: The Neopower 2 pin connector is engineered for robust performance in a variety of high-demand systems. Its primary applications include critical automotive components such as Air Conditioning Compressors, PTC (Positive Temperature Coefficient) heaters, OBC (On-Board Chargers), and DCDC converters. It's also an ideal high voltage connector solution for Power Distribution Units (PDU) and Battery Disconnect Units (BDU) in electric vehicles and other advanced industrial machinery where reliable power and signal transmission are essential.
Q2: What are the voltage and current ratings for this 2 pin electrical connector?
A: This Neopower connector is designed for high power applications. For the power circuit, it supports a rated voltage of 1000V (AC/DC). The rated current capacity for power depends on the cable used: 20A for 2.5mm² cables, 32A for 4mm² cables, and up to 40A for 6mm² cables. For the signal circuit, it's rated for 24V (AC/DC) and 2A current, typically with a 0.35mm² cable.
Q3: What safety features are incorporated into the Neopower 2 pin connector?
A: Safety is paramount in the design of this Neopower automotive connector. It includes several key features: Secondary Lock Function: Ensures the connector halves remain securely mated, preventing accidental disconnection. Poka-yoke Keying: This mechanical design prevents incorrect assembly or mis-mating of the connector. HVIL (High Voltage Interlock): This critical safety circuit ensures high voltage is disconnected before the connector can be unmated, protecting users and equipment. Touch-proof Design (IPXXB): Contacts are protected against accidental finger contact even when unmated, enhancing user safety during handling.
Q4: How does this 2 pin electrical connector perform in harsh environments?
A: The Neopower 2 pin connector is built to withstand demanding conditions. It has an operating temperature range of -40°C to +125°C, making it suitable for extreme hot and cold environments. When mated, the connector achieves an IP67 & IP6K9K rating, signifying it's fully protected against dust ingress and can withstand high-pressure, high-temperature water jets. This makes it an excellent choice for applications exposed to moisture, dirt, and challenging weather.
Q5: What cable sizes are compatible with this connector, and does it offer EMI shielding?
A: For the power circuit, this versatile 2 pin connector accommodates cable cross-sections ranging from 2.5mm² to 6mm². The signal circuit is typically used with 0.35mm² cables. Furthermore, the connector features a 360° shielding design. This comprehensive shielding is crucial for maintaining signal integrity and minimizing electromagnetic interference (EMI), which is particularly important in sensitive electronic systems found in modern vehicles and industrial equipment.
Q6: Can this Neopower connector be used for both AC and DC applications?
A: Yes, the power circuit of the Neopower 2 pin electrical connector is rated for 1000V for both AC (Alternating Current) and DC (Direct Current) applications. Similarly, the signal circuit is rated for 24V AC/DC, offering flexibility across various electrical system designs.
Q7: What is the dielectric withstanding voltage for this high voltage connector?
A: The dielectric withstanding voltage, a measure of its insulation capability, is robust for this Neopower connector. For the power circuit, it is rated at 3000V AC (50Hz, under normal conditions). For the signal circuit, it is 1000V AC (50Hz, under normal conditions), ensuring reliability and safety in high voltage environments.
