Product Details:
|
| Insulation Resistance: | 1000MΩ Min | Operation Temperature: | -40℃ ~+85 ℃ |
|---|---|---|---|
| Working Pressure: | 0.5~1.6 Bar | Mating Cycle: | ≥100 Times |
| Operation Te: | -40℃ ~ +125℃ | Current Rating: | Up To 150A |
| Cpa: | With | Voltage Rating: | Up To 600V |
| Mounting Style: | Panel Mount Or PCB Mount | Shell Materials: | Plastic |
| Shielded Efficiency: | 70dB( 10KHz-5Mhz) 65 DB(5MHz-500MHz) | Salt Spray Re: | 144H (Mated) |
| Product Series: | FSP8.0 | Locking System: | CPA/TPA (Yes, Typically With CPA/TPA) |
| Certifications: | UL, CSA, RoHS |
Key Features:
Product Description

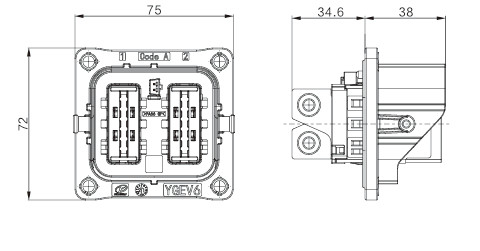

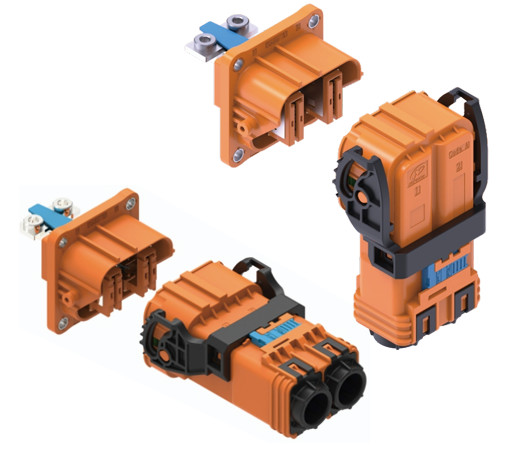

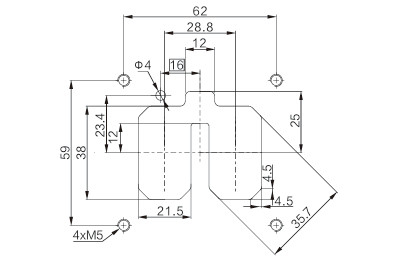

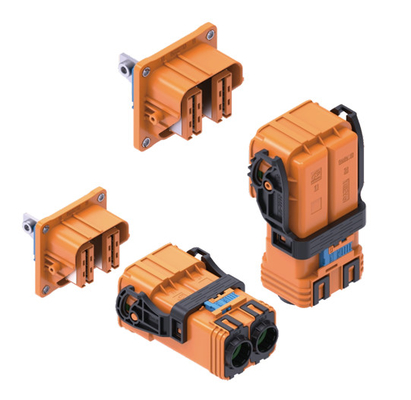

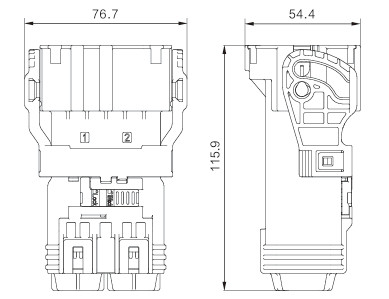

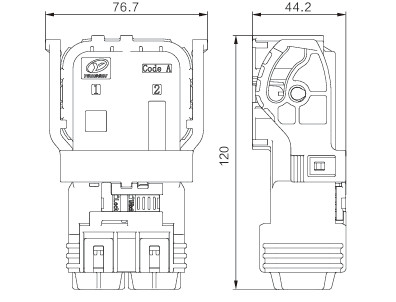

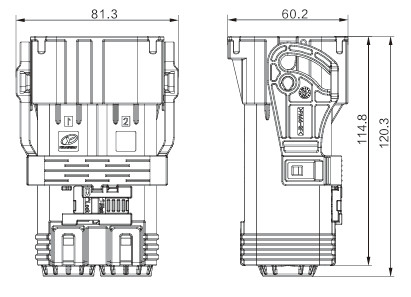

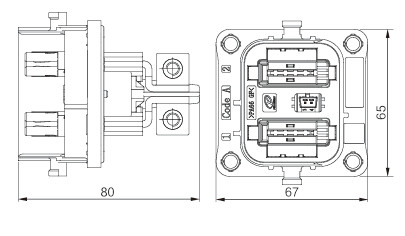

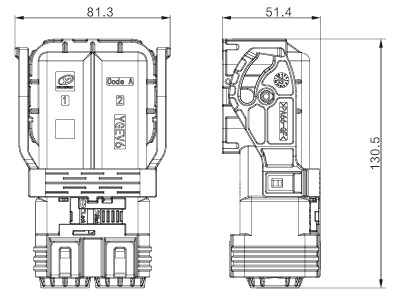

The Neopower 2 pin connector is a state-of-the-art solution engineered for high-voltage and high-current systems in electric vehicles and industrial applications. Designed to connect critical components like batteries, motor controllers, and Power Distribution Units (PDUs), this hybrid power connector provides a single, robust interface for both power and signal transmission, ensuring unparalleled reliability and performance.
Built for safety and durability, the connector integrates multiple advanced features. The High Voltage Interlock (HVIL) circuit and touch-proof contacts protect technicians and operators from high-voltage hazards, while the secondary lock provides additional security against accidental disconnection due to vibration or impact. Its Poka-yoke design eliminates the risk of connection errors, a crucial feature in complex assemblies. This connector is not just powerful but also exceptionally rugged.
With a superior IP67 and IP6K9K rating, this waterproof battery connector thrives in the harshest environments, providing a dependable connection even when exposed to water, dirt, and dust. The 360° shielding is essential for maintaining clean signals for the integrated 2A/24V signal pins, which is critical for systems with sensitive electronics like motor controllers. Supporting heavy-duty cables up to 95mm², it is the definitive choice for applications demanding maximum power flow.
Choose the Neopower High Voltage 2 pin connector for your next project to guarantee a safe, secure, and highly efficient connection. Contact us today to discover how our advanced connector solutions can power your innovation.
| Attribute | Value |
| Rated Current (Power) | 300A (at 70mm²), 400A (at 95mm²) |
| Rated Current (Signal) | 2A (at 0.35mm²) |
| Rated Voltage (Power) | 1000V AC/DC |
| Rated Voltage (Signal) | 24V AC/DC |
| Protection Rating | IP67 & IP6K9K |
| Operating Temperature | -40°C to +125°C |
| Compatible Cable Range | 70mm² to 95mm² (Power) |
| Safety Features | HVIL (High Voltage Interlock), Touch-proof (IPXXB) |
| Connection Security | Secondary Lock Function, Poka-yoke |
| Shielding | 360° EMI Shielding |
| Dielectric Withstanding (Power) | 3000V AC at 50Hz (Normal Conditions) |
| Dielectric Withstanding (Signal) | 1000V AC at 50Hz (Normal Conditions) |
| Primary Applications | Battery, Motor Controller, Power Distribution Unit (PDU) |
Engineered for high-demand environments, the Neopower hybrid power connector is the ultimate solution for applications requiring robust, safe, and reliable high-voltage connections.
Q: What makes this a "hybrid power connector"?
A: This is a hybrid power connector because it combines different functions within a single housing. It features two large primary contacts designed to handle very high current and voltage (up to 400A/1000V) for power transmission, alongside smaller contacts designed for low-voltage signals (2A/24V). This allows you to supply power and communicate with a device using just one durable connector.
Q: How waterproof is this connector? Can it be used in wet or dirty environments?
A: Absolutely. The connector is rated at IP67 and IP6K9K. This means it is fully protected from dust ingress and can be submerged in up to 1 meter of water for 30 minutes (IP67). The IP6K9K rating provides protection against powerful, high-temperature water jets. This makes it a truly reliable waterproof battery connector suitable for all-weather use and wash-down procedures.
Q: What are the HVIL and secondary lock features for?
A: Safety is paramount in high-voltage systems. The HVIL (High Voltage Interlock) is a critical safety circuit that ensures the high-voltage power is shut off before the connector can be disconnected. The secondary lock is a physical mechanism that provides an extra layer of security, preventing the 2 pin connector from accidentally vibrating loose, which is essential in automotive and industrial applications.
Q: What is the benefit of the Poka-yoke design?
A: Poka-yoke is a Japanese term for "error-proofing." The connector is designed with a unique keying shape that makes it physically impossible to mate incorrectly. This prevents damage to the connector pins and the connected equipment, ensuring a perfect and secure connection every single time.
Q: Why is 360° shielding important for this high voltage connector?
A: High-current applications, like those involving motor controllers, can generate significant electromagnetic interference (EMI). The 360° shielding acts like a protective barrier around the internal contacts, preventing this "noise" from disrupting the low-voltage signals within the connector. This ensures your system's data communication remains clear and reliable.
Q: What wire size is this connector designed for?
A: This heavy-duty connector is designed to accommodate large power cables with a cross-sectional area ranging from 70mm² to 95mm². This large range allows it to safely and efficiently handle currents up to 400A without overheating, making it ideal for true high-power systems.
NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.

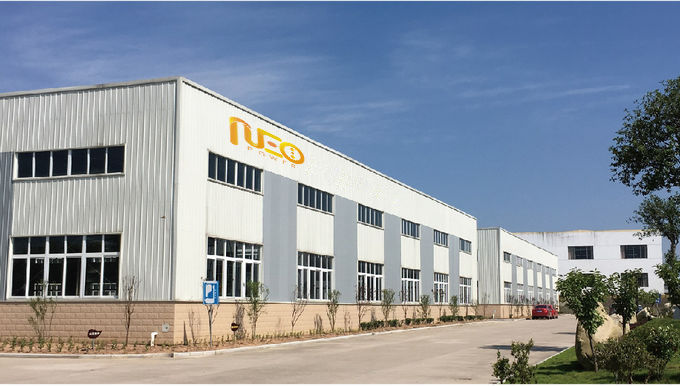

Neopower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, Neopower delivers top quality products and excellent services to customers around the world.
The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.
