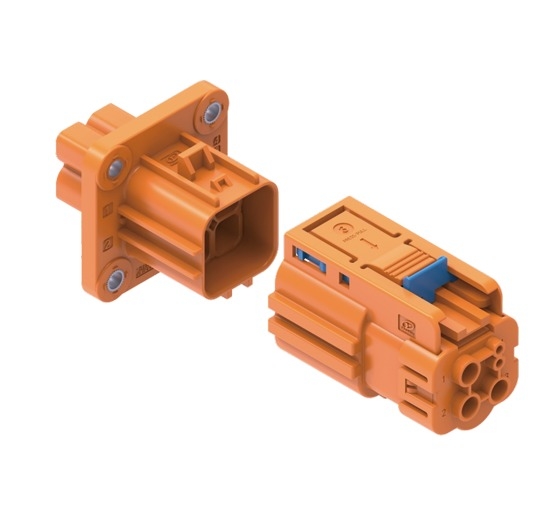

Neopower 800V 40A HVIL 2+1 Pin EV Connector

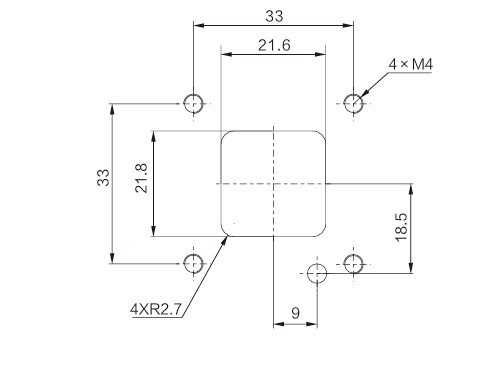

Frequently Asked Questions (FAQs)

Group 1: Connector Fundamentals & Design

1. What exactly is this 2+1 pin connector designed for?

That's a great starting point. Think of this not just as a "pin holder," but as the central nervous system for a critical part of an electric vehicle. This Neopower EV connector is specifically engineered to simultaneously deliver high-power (the '2' power pins) and essential communication data (the '1' signal pin) in one secure package. It’s built for the heart of the EV system, where robust power delivery and flawless signaling are non-negotiable.

2. Why not just use a simpler 3-pin power connector?

Ah, a classic engineering question! A standard 3-pin connector might just carry power. But in a modern EV, components need to "talk" to each other. The dedicated signal pin in our 2+1 pin connector is vital for things like temperature monitoring or communicating with the vehicle's main computer. Using our integrated solution simplifies your wiring harness, reduces potential points of failure, and ensures your system is not just powered, but also smart and responsive. It’s a more elegant and reliable design.

3. I see the term "Poka-yoke" in the features. What does that mean for me?

Poka-yoke is a Japanese term that literally means "mistake-proofing," and it's a lifesaver during assembly. Our connector is designed with a unique shape and keying. This means it's physically impossible to plug it in the wrong way. For a technician on an assembly line or in a repair shop, this eliminates any guesswork and prevents costly damage that could be caused by an incorrect connection. It ensures that this automotive connector mates perfectly, every single time.

Group 2: Installation & Mating

1. Is installing this high-voltage connector a DIY job?

In a word: no. We have to be really clear here. This is a professional-grade high-voltage connector designed for systems running up to 800V. Installation should always be performed by qualified technicians who understand high-voltage safety protocols and have the correct tools for crimping and assembly. Safety is our number one priority, and that extends to proper installation.

2. How does the "Secondary Lock" actually work?

It’s a simple but brilliant feature for total security. After you push the connector together (the primary connection), a separate latch or tab—the secondary lock—is engaged. You'll often hear a confident "click." This little piece acts as a deadbolt, preventing the EV connector from vibrating loose or being pulled apart accidentally. It gives you that extra layer of confidence that your connection is rock-solid, which is absolutely critical in a high-vibration automotive environment.

3. What specific cable sizes are compatible with this connector?

This Neopower connector is designed for flexibility within its power range. For the two main power contacts, it is optimized for 4mm² to 6mm² wire gauges, which perfectly aligns with its ability to handle up to 40A. The smaller signal pin is designed for a 0.35mm² wire. Using the correct wire size is key to ensuring a secure crimp, safe operation, and the full performance of the connector.

Group 3: Performance & Specifications

1. How much power can this 800V 40A EV connector really handle?

It's built to handle the real deal. The 800V 40A rating isn't just a theoretical maximum; it's the continuous operational rating. This means it can comfortably and safely manage a 40-amp current at 800 volts all day long without overheating or degrading. We’ve also engineered it with a high dielectric withstanding voltage (3000V AC), meaning it has a huge safety margin to prevent electrical arcing under stress.

2. Is the 800V rating for AC or DC?

Great question for clarification. This high-voltage connector is rated for 800V AC/DC, making it incredibly versatile. While it’s primarily used in the high-voltage DC systems of electric vehicles (like in the battery-to-OBC or PDU pathways), its robust design means it's equally capable of handling AC applications within that voltage range.

3. Will this connector affect my EV's performance or charging speed?

Not at all—in fact, its purpose is to enable maximum performance. A poor connector can act as a bottleneck, creating resistance, generating heat, and limiting power flow, which can slow down charging or sap power. By using a high-quality Neopower EV connector with excellent conductivity and a secure connection, you ensure that the power flows efficiently from the source to the component, allowing your systems (like your On-Board Charger) to operate at their peak designed speed.

Group 4: Safety & Reliability Features

1. What is HVIL, and why is it so important in an EV connector?

Think of HVIL (High-Voltage Interlock) as the ultimate safety guardian for your system. It's a smart, low-voltage circuit that runs through the connector. If someone tries to unplug the high-voltage connector while the system is live, the HVIL circuit breaks first, instantly telling the vehicle's "brain" to shut off the power before the main power pins separate. It’s a split-second action that prevents dangerous electrical arcs and keeps technicians safe. It’s not just a feature; it’s peace of mind.

2. How does the touch-proof (IPXXB) design provide safety?

The touch-proof design, rated to IPXXB, means that all the live, high-voltage contacts are deeply recessed and shielded within the connector housing. Even when the connector is unmated and the contacts are technically exposed, you can't accidentally touch them with a standard "test finger" (the industry standard for testing this). This prevents electric shock, making this automotive connector significantly safer to handle during assembly and service.

3. You mention this is a reliable connector. What makes it so?

Reliability for us is a combination of smart design and rugged construction. It comes from the sum of its parts: the Poka-yoke preventing incorrect mating, the secondary lock stopping disconnection, the HVIL providing active electrical safety, and the IP67/IP6K9K sealing protecting it from the elements. It’s the confidence that this connector was built from the ground up to not just meet, but exceed the extreme demands of the automotive world.

Group 5: Durability & Environment

1. What do the IP67 and IP6K9K ratings mean in the real world?

Let's break it down. IP67 means the connector is completely dust-tight and can be submerged in 1 meter of water for 30 minutes without any leakage. That’s your baseline protection against rain, puddles, and dirt. IP6K9K is a much tougher German automotive standard. It means our EV connector can withstand being blasted by high-pressure, high-temperature (80°C) water jets from close range. Bottom line: whether it’s a car wash or an off-road adventure, this connector is sealed to survive.

2. Can this connector handle the extreme heat of an engine bay or a cold winter?

Absolutely. It's designed for exactly that. With an operating temperature range of -40°C to +125°C, it’s perfectly comfortable in the freezing cold of a northern winter or the intense ambient heat of an under-hood application in the desert. We use high-quality, automotive-grade plastics and seals that won't get brittle in the cold or deform in the heat, ensuring the Neopower connector performs reliably across all seasons.

3. What is the expected mating cycle life of this connector?

This connector is designed for long-term installation but is robust enough for periodic service. It is rated for a significant number of mating cycles (typically in the dozens, as per automotive standards) without any degradation in performance or sealing capability. It's not designed for daily plugging and unplugging, but you can be confident that it will maintain its integrity throughout the vehicle's service life.

Group 6: Applications & Compatibility

1. Where is this high-voltage connector typically used in an electric vehicle?

You'll find this workhorse in the most critical parts of an EV's high-voltage architecture. Its most common homes are connecting the On-Board Charger (OBC), the main Power Distribution Unit (PDU) or junction box, the electric air conditioning compressor, and high-power PTC heaters. Essentially, any component that needs a significant amount of safe, reliable power will benefit from the Neopower 800V 40A connector.

2. Could I use this for a non-automotive project, like a home solar system?

While the connector is incredibly robust, it has been specifically designed and validated for automotive standards (like IP6K9K and HVIL). For other applications like stationary energy storage or industrial machinery, we would recommend consulting with our team. We may have another product better suited for those specific regulations and use cases. This unit truly shines in the automotive connector space.

3. Why should I choose the Neopower connector over other options on the market?

It comes down to trust and intelligent design. When you choose the Neopower EV connector, you're not just getting a piece of plastic and metal; you're investing in a component where every feature—from the HVIL circuit and secondary lock to the Poka-yoke keying and extreme IP67/IP6K9K sealing—was thoughtfully engineered for the safety and longevity of your project. We offer a Tier 1 automotive-quality solution that provides superior reliability and peace of mind, ensuring your innovation is powered by the best.
