Product Details:
|
The Neopower 60A In-line Connector Set offers unparalleled flexibility for designing and deploying high-power energy storage systems. Engineered for rapid charging applications, this cable-to-cable connector allows you to create secure, high-performance DC power extensions or inter-module links without the need for panel mounting. The "Air Docking" design features a robust, weatherproof seal and a secure twist-lock mechanism, ensuring a stable, low-resistance connection that is protected from the elements. It is the ideal solution for modular battery systems, mobile power applications, and any scenario that demands a reliable, field-serviceable high-power connection.
True In-line Connection: The "Air Docking" socket and plug are designed specifically for secure, overmolded, or field-terminated cable-to-cable connections.
60A Fast Charge Performance: Capable of handling 60A at 1000V DC, this connector set is built to facilitate rapid charging and minimize energy loss.
Secure Twist-Lock System: A rugged locking collar provides tactile feedback and prevents accidental disconnection from cable pull, vibration, or impact.
Extreme IP68 Environmental Sealing: Offers the highest level of dust and water protection, making it fully submersible and suitable for the harshest outdoor and marine environments.
Color-Coded for System Integrity: Available in Red, Orange, and Black, allowing for clear and safe identification of different circuits and polarities, preventing costly installation errors.
High-Durability Construction: Made from UL94-V0 flame-retardant Nylon and featuring silver-plated brass contacts for maximum safety, efficiency, and a long service life.
An essential component for flexible and robust high-power DC systems:
High-Power Cable Extensions for DC Fast Chargers
Interconnecting Modular Energy Storage Cabinets
Mobile Power Distribution Units for Events and Job Sites
Marine and Offshore DC Power Systems
Heavy-Duty Industrial and Agricultural Equipment.
| Specification | Value |
| Rated Current | 60A |
| Rated Voltage | 1000V DC |
| IP Rating | IP68 |
| Fire Resistance Rating | UL94-V0 |
| Operating Temperature | -40°C to +125°C |
| Housing Material | Nylon |
| Hardware Material | Brass |
| Surface Coating | Silver Plated |
| Wire Range | 6-8AWG |
| Connection Type | In-line (Cable-to-Cable) |
| Locking Mechanism | Twist-Lock |

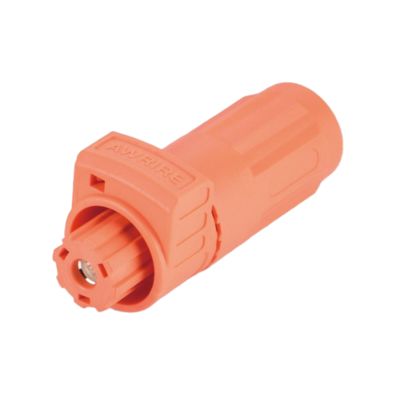

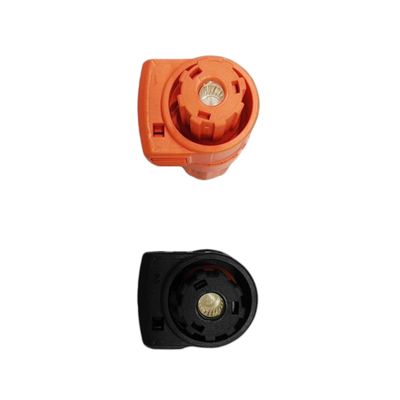

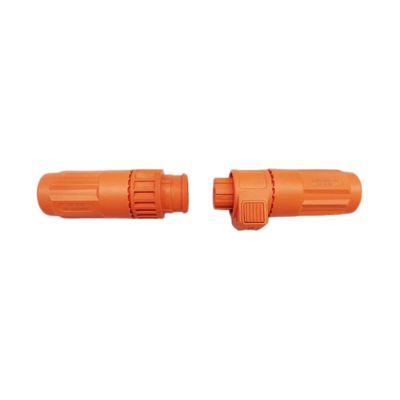

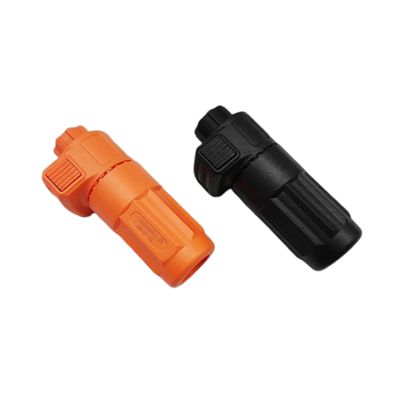

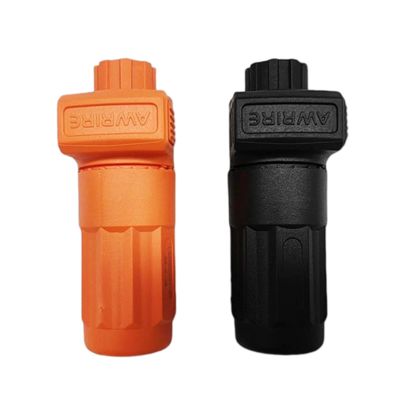

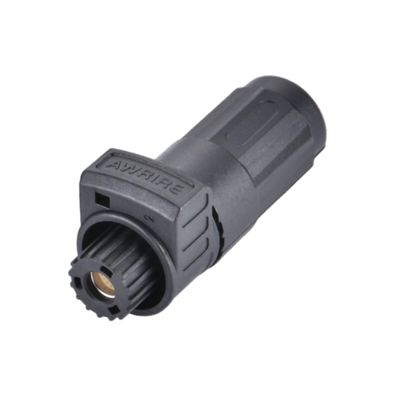

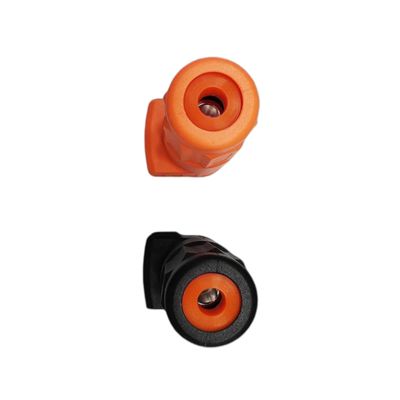

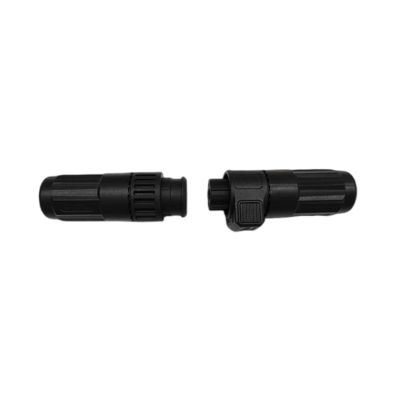

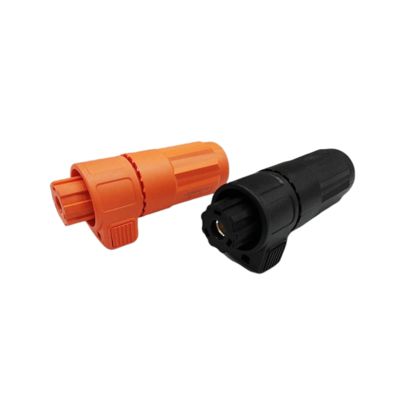

Product Pictures:
Company Profile
NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.
NeoPower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, NeoPower delivers top quality products and excellent services to customers around the world.
Certifications & Approvals
The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.
