Product Details:
|
The Neopower 60A In-line Socket is the essential component for building professional-grade, high-power DC cable assemblies. Designed for "Air Docking" (cable-to-cable) connections, this receptacle provides a secure and weatherproof female termination point for your fast-charging systems. It is engineered to handle the intense demands of rapid charging, ensuring a safe, stable, and efficient power flow. When paired with its corresponding Neopower 60A plug, it creates a fully sealed, IP68-rated connection with a secure locking mechanism, perfect for building extension cables or modular links between energy storage units.
Versatile Cable-Mount Design: The "Air Docking" format is perfect for terminating high-power cables, creating custom-length extensions, or building flexible inter-module links.
Fast Charge Rated: Fully capable of handling 60A at 1000V DC, providing the performance needed for modern rapid-charging protocols.
Secure Mating Interface: Designed to form a robust, twist-locking connection with the Neopower 60A plug, preventing accidental separation.
Superior IP68 Seal: Guarantees complete protection against dust and water ingress when mated, ensuring reliability in the most severe operating conditions.
Color-Coding for Safety: Available in Red, Orange, and Black to enable error-free system wiring and clear identification of polarity.
Durable, High-Performance Materials: Constructed from UL94-V0 flame-retardant Nylon with silver-plated brass contacts for maximum safety and minimal electrical resistance.
An ideal component for OEMs, system integrators, and technicians for:
Manufacturing custom DC power extension cables.
Terminating connections on modular energy storage containers.
Field repair and service of fast-charging equipment.
Building flexible power links for mobile or temporary installations.
Prototyping and developing new high-power DC products.
| Specification | Value |
| Component Type | In-line Socket (Female Receptacle) |
| Rated Current | 60A |
| Rated Voltage | 1000V DC |
| IP Rating (When Mated) | IP68 |
| Fire Resistance Rating | UL94-V0 |
| Operating Temperature | -40°C to +125°C |
| Housing Material | Nylon |
| Hardware Material | Brass |
| Surface Coating | Silver Plated |
| Wire Range | 6-8AWG |

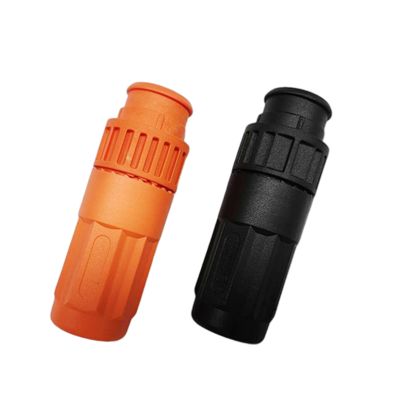

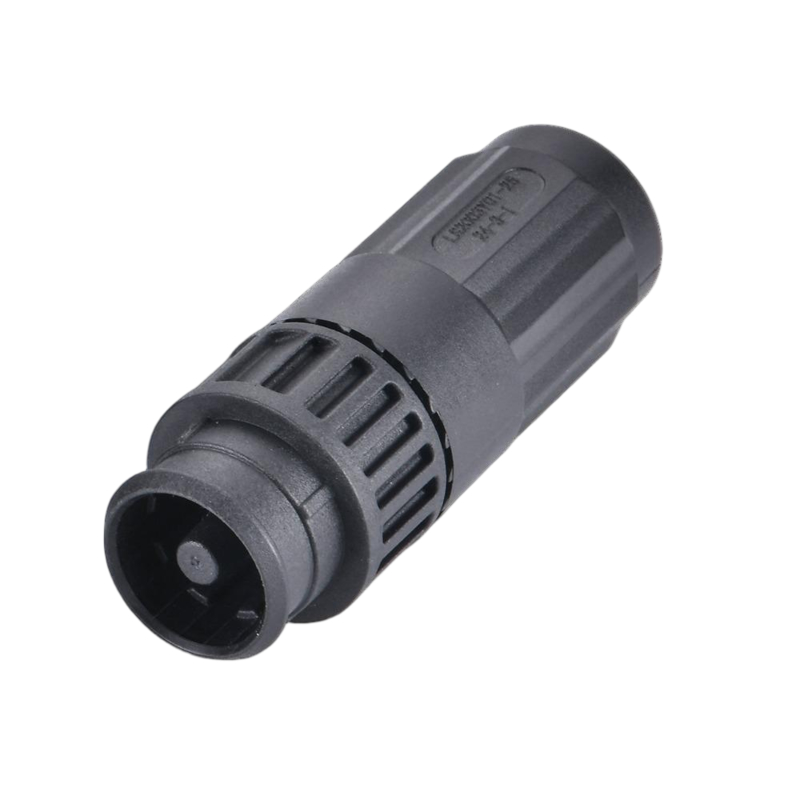

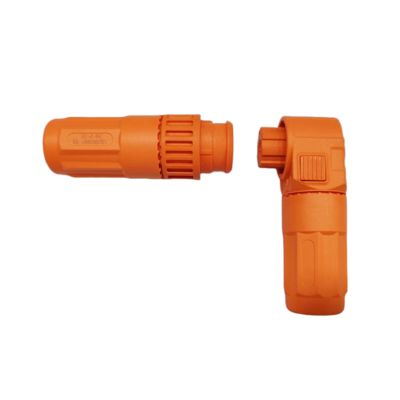

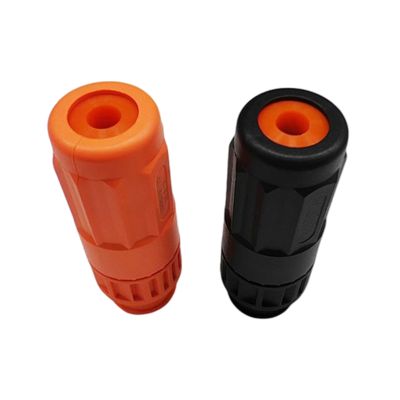

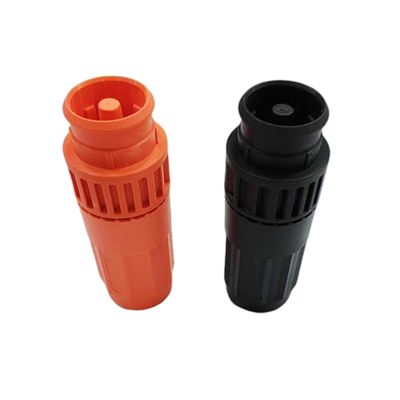

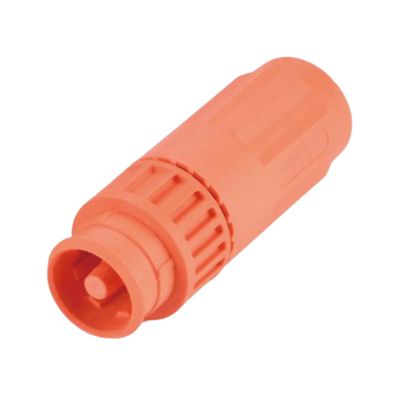

Product Pictures:
Company Profile
NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.
NeoPower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, NeoPower delivers top quality products and excellent services to customers around the world.
Certifications & Approvals
The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.
