Product Details:
|

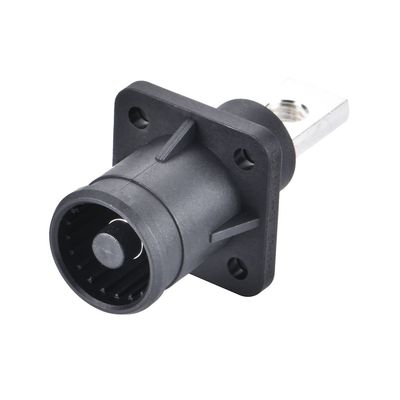

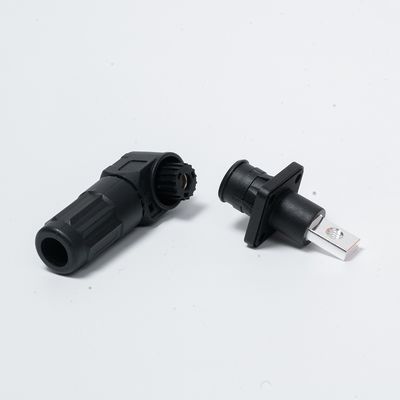

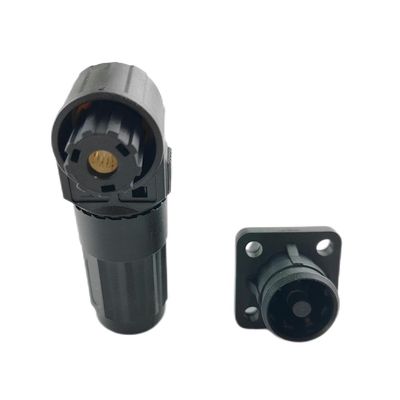

The Neopower 120A Busbar Mount Receptacle is the definitive power interface for high-capacity energy storage systems. This heavy-duty panel socket is engineered to provide a direct, highly conductive link to your battery pack's main busbar, ensuring the most efficient and reliable path for 120A fast-charging currents. Its robust "Lock Copper Row" design creates a secure, low-resistance connection that minimizes heat buildup and maximizes performance. Designed for the front lines of power-dense applications, this receptacle is the cornerstone of a safe and ultra-efficient charging ecosystem when paired with a corresponding Neopower 120A plug.
Direct-to-Busbar Connection: The "Lock Copper Row" design allows for secure, direct mounting to the battery busbar, offering the lowest possible contact resistance and superior thermal management.
Extreme 120A Power Rating: Built to handle the massive, continuous currents of ultra-fast charging and heavy discharge cycles in large-scale energy containers.
Rugged Panel-Mount Design: A durable four-hole flange ensures a secure, vibration-proof installation onto the chassis of a battery cabinet or power distribution panel.
Pure Copper Contacts: Features silver-plated pure copper terminals to deliver maximum electrical conductivity and reliability under extreme thermal and electrical stress.
IP68 Weatherproof Seal: Creates a fully dust-tight and waterproof connection when mated with its compatible plug, guaranteeing flawless operation in any environment.

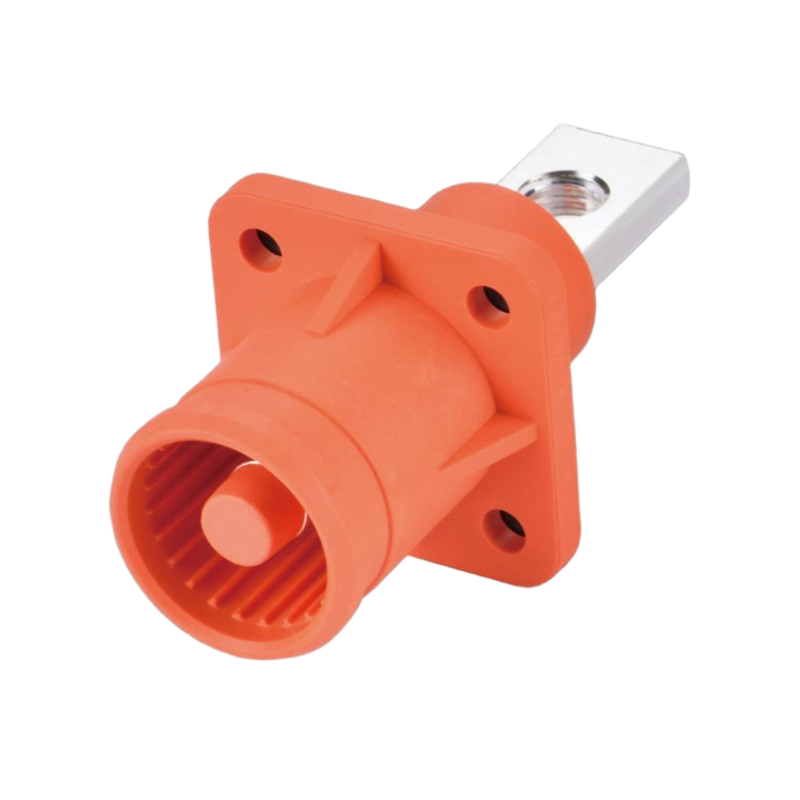

Color-Coded for Safety: Available in Red, Orange, and Black, providing a clear visual indicator for polarity to prevent dangerous wiring errors.
The foundational power connection for a wide range of high-current DC systems:
Main power I/O for energy storage battery containers.
High-current connection points for commercial and industrial BESS.
Infrastructure ports for DC fast-charging stations.
Power panels for industrial machinery and DC microgrids.
OEM integration into high-power battery-driven equipment.
| Specification | Value |
| Component Type | Busbar Mount Receptacle (Female Socket) |
| Rated Current | 120A |
| Rated Voltage | 1000V DC |
| IP Rating (When Mated) | IP68 |
| Fire Resistance Rating | UL94-V0 |
| Operating Temperature | -40°C to +125°C |
| Housing Material | Nylon |
| Hardware Material | Copper |
| Surface Coating | Silver Plated |
| Termination Style | Direct Busbar Mount |
Product Pictures:
