Product Details:
|
The Neopower 120A In-line Fast Charging Socket is the ultimate component for creating heavy-duty, flexible DC power cables. This "Air Docking" receptacle is specifically designed for high-power cable-to-cable connections, enabling the construction of custom-length extension cords or robust links between modular energy storage units. It is engineered to handle the massive 120A currents of ultra-fast charging while providing a secure, locked, and fully weatherproof connection. Featuring pure copper contacts for maximum efficiency, this socket is the professional choice for any application that demands reliability and high performance in the field.
Heavy-Duty In-line Design: The "Air Docking" format is purpose-built for terminating heavy-gauge (4-6AWG) cables to create secure female connection points.
Extreme 120A Performance: Safely manages the massive currents of ultra-fast charging and high-power discharge, making it ideal for large-scale energy systems.
Secure Locking Mechanism: Integrates a robust locking system that prevents accidental disconnection, ensuring continuous power flow in demanding environments.
Pure Copper Contacts: Utilizes silver-plated pure copper terminals to deliver maximum conductivity, minimize voltage drop, and reduce heat generation under load.
Ultimate IP68 Waterproofing: Forms a completely sealed and submersible connection when paired with its corresponding Neopower 120A plug, offering unparalleled protection.
Color-Coded for Safety: Available in Red, Orange, and Black to provide clear visual identification of circuits, preventing wiring errors.
The essential building block for a variety of mobile and modular power systems:
Manufacturing of heavy-duty 120A DC extension cables.
Creating flexible power links between separate energy storage containers.
Field-deployable power systems for events, military, or disaster relief.
High-power umbilicals for mobile industrial or agricultural equipment.
OEM integration into products requiring a detachable, high-power cord.
| Specification | Value |
| Component Type | In-line Socket (Female Receptacle) |
| Rated Current | 120A |
| Rated Voltage | 1000V DC |
| IP Rating (When Mated) | IP68 |
| Fire Resistance Rating | UL94-V0 |
| Operating Temperature | -40°C to +125°C |
| Housing Material | Nylon |
| Hardware Material | Copper |
| Surface Coating | Silver Plated |
| Wire Range | 4-6AWG |

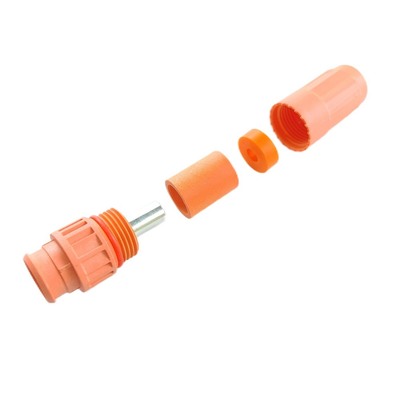

Product Pictures:
Company Profile
NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.
NeoPower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, NeoPower delivers top quality products and excellent services to customers around the world.
Certifications & Approvals
The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.
